Spreader Main Page

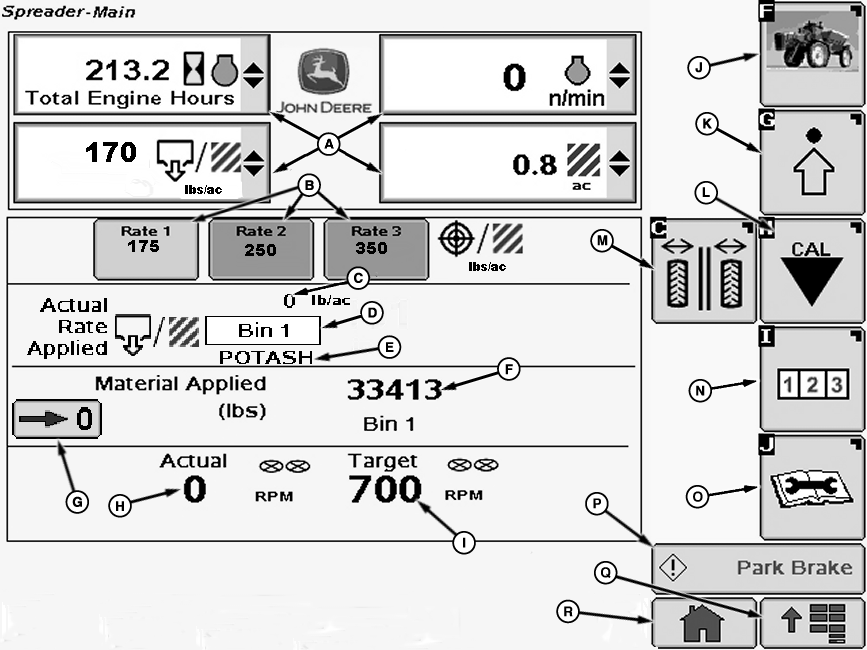

N91117-UN-16FEB11

Single Bin Spreader Main Page

A - Information Drop Down Menu

B - Pre-programmed Target Application Rates

C - Actual Rate Applied

D - Bin Status Icon

E - Product Name

F - Material Applied

G - Zero Button

H - Actual Spinner Speed (rpm)

I - Target Spinner Speed (rpm)

J - Dry Spreader Main Softkey

K - Setup Menu Softkey

L - Calibration Menu Softkey

M - Tread Adjust Softkey

N - Totals Softkey

O - Diagnostics Softkey

P - Message Center and Time Display

Q - Menu Button

R - Home Button

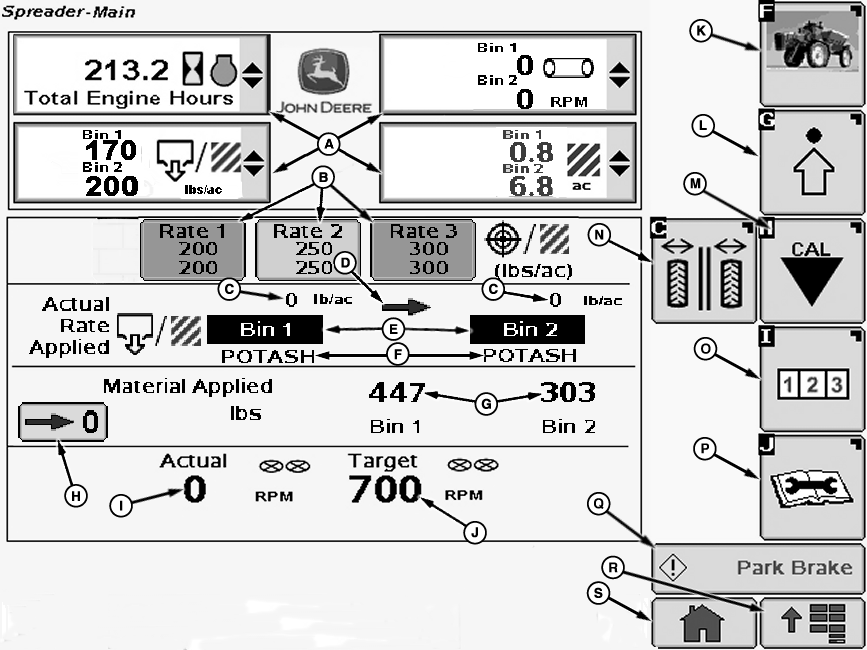

N91118-UN-16FEB11

Dual Bin Spreader Main Page

A - Information Drop Down Menu

B - Pre-programmed Target Application Rates

C - Actual Rate Applied

D - Bin Chaining Icon/Button

E - Bin Status Icon

F - Product Name

G - Material Applied

H - Zero Button

I - Actual Spinner Speed (rpm)

J - Target Spinner Speed (rpm)

K - Dry Spreader Main Softkey

L - Setup Menu Softkey

M - Calibration Menu Softkey

N - Tread Adjust Softkey

O - Totals Softkey

P - Diagnostics Softkey

Q - Message Center and Time Display

R - Menu Button

S - Home Button
