Message Center Cautions and Warnings

N89299
N89299-UN-03SEP10

N91681
N91681-UN-07MAR11

A - Caution Indicator Lamp

B - Caution Message

The Caution Indicator Lamp (A) lights on the corner post display. A caution message (B) appears in the SprayStar display's Message Center. The message remains visible as long as the condition persists.

An audible alarm is sounded when the continuous caution first appears.

N91682
N91682-UN-12JUL12

N86776
N86776-UN-27OCT09

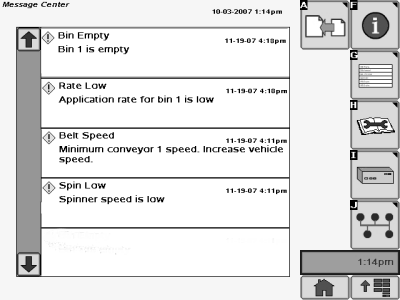

Select Message Center button (A) and a Message center screen will appear showing a list of the warnings.

OUO6092,0000511-19-20110307
