Clean Screens and Cooling Package—As Required

N97489
N97489-UN-17SEP12

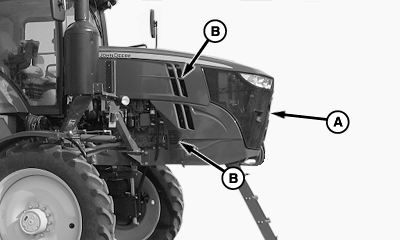

A - Grill Screens

B - Engine Side Shield Louvers

Stop engine and clean front grill screens (A) and engine side shields louvers (B) using a brush.

Clean air conditioning condenser/fuel cooler, hydraulic oil cooler, charge air cooler and radiator. (See Cleaning Cooling Package in Engine and Drivetrain section for procedure.)

OUO6092,00007C8-19-20120809
