Setup Tank Reset Volume

1.

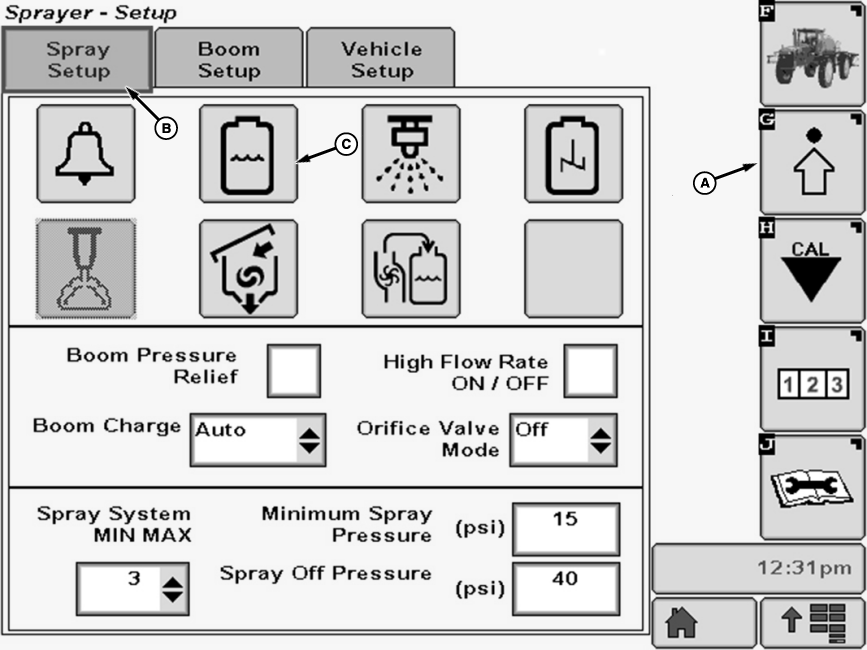

   N101901-UN-08MAY13

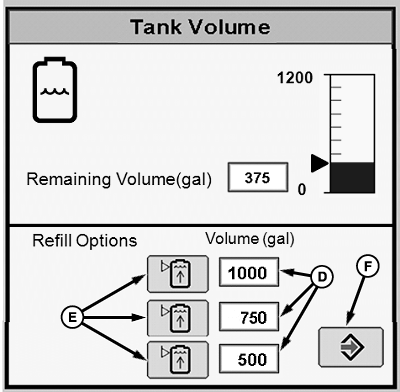

   N102639-UN-08MAR13

   A - Setup Softkey

   B - Spray Setup Tab

   C - Tank Reset Button

   D - Input Box

   E - Refill Button

   F - Enter Key

   Select the Setup softkey (A) to view the setup menu.

---




2. Select the Spray Setup tab (B).

3. Select tank reset button (C).

4. Select input boxes (D) and enter desired refill volumes using pop-up key pad.

5. Select refill button (E) for the desired refill volume.

6. Press enter key (F) to confirm.
