Setup Agitation Rates

1.
   N101903-UN-08MAY13


   N101904-UN-12FEB13

   A - Setup Softkey

   B - Spray Setup Tab

   C - Spray Rate Button

   D - Drop-Down Box

   E - Enter Button

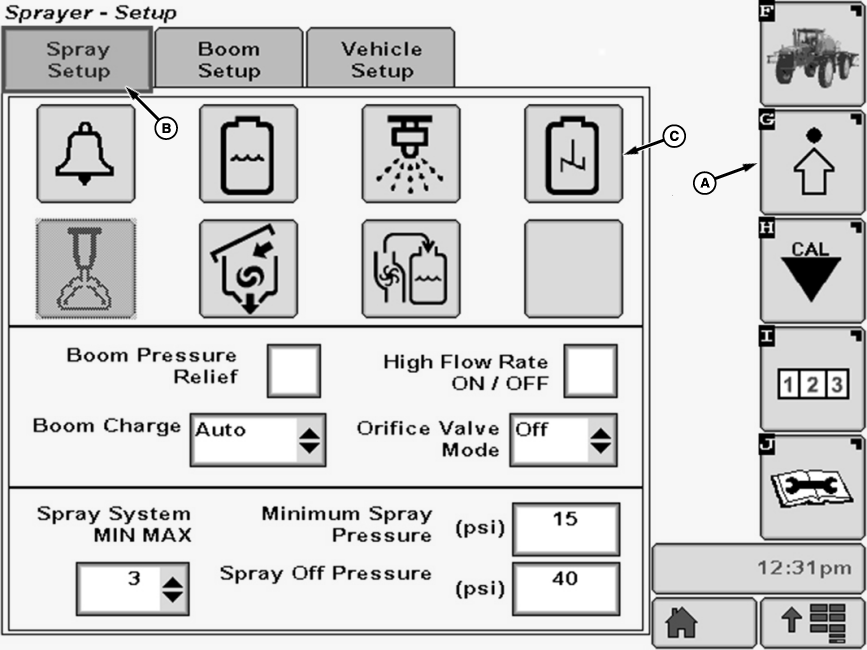

   Select the Setup softkey (A) to view the setup menu.

---




2. Select the Spray Setup tab (B).

3. Select Agitation button (C). Select the enter button to accept new value.

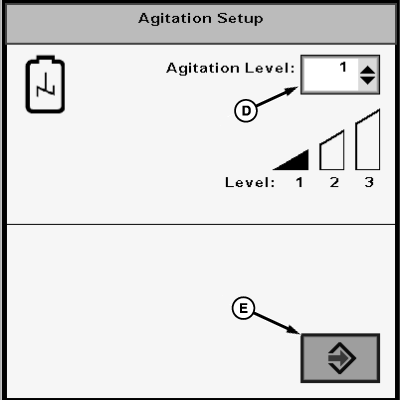

4. Select agitation rate (1-3) from drop-down box (D). Select the Enter button (E) to accept new value.
