Foam Marker

1.
   N101905-UN-08MAY13

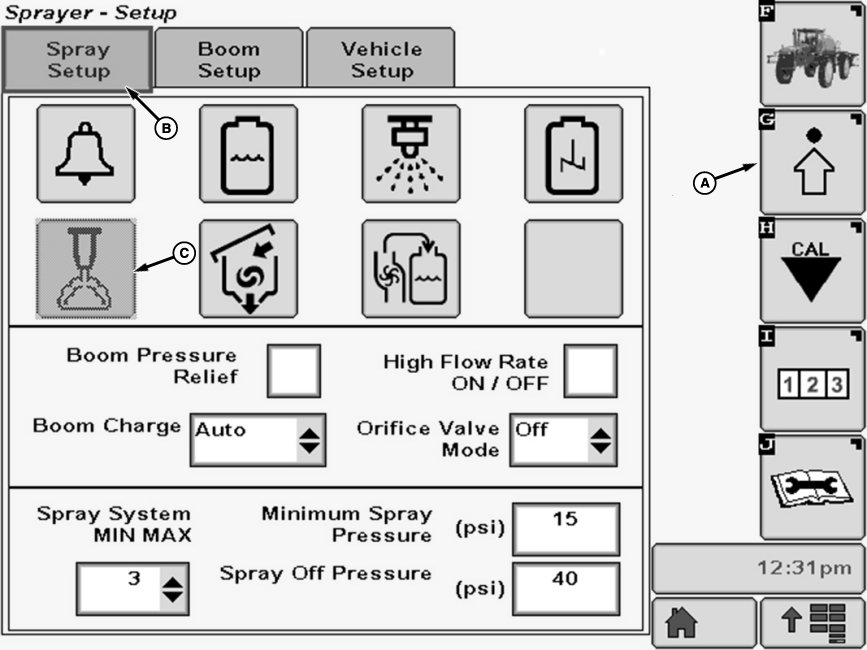

   A - Setup Softkey

   B - Spray Setup Tab

   C - Foamer Button

   Select the Setup softkey (A) to view the setup menu.

---




2. Select the Spray Setup tab (B).

3. Select Foamer button (C).

4.
   N102220-UN-11FEB13


   N103404-UN-24APR13

   A - Drop-Down Box

   B - Enter Button

   C - Foam Marker Switch

   Select foamer setting from drop-down menu (A). Choices available are:
   • OFF
   • AUTO
   • MANUAL



---




5. Select Enter button (B) to confirm the choice.

When MANUAL is selected, the operator controls which side of the vehicle the marker is operating. When AUTO is selected, the foam marker automatically switches from one side to the other when the solution spray master ON/OFF switch is turned off and then on again, or if switch on top of multifunction control handle is pushed.

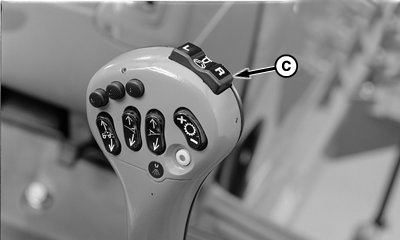

Foam marker switch (C) on multifunction control handle is a two-function switch used to select right-hand or left-hand foam markers. Foam marker system is turned off by pressing both L and R switches at same time.
