Setup Eductor Pressure Mode

1.
   N101906-UN-08MAY13


   N103730-UN-09MAY13

   A - Setup Softkey

   B - Spray Setup Tab

   C - Eductor Button

   D - Drop-Down Box

   E - Enter Button

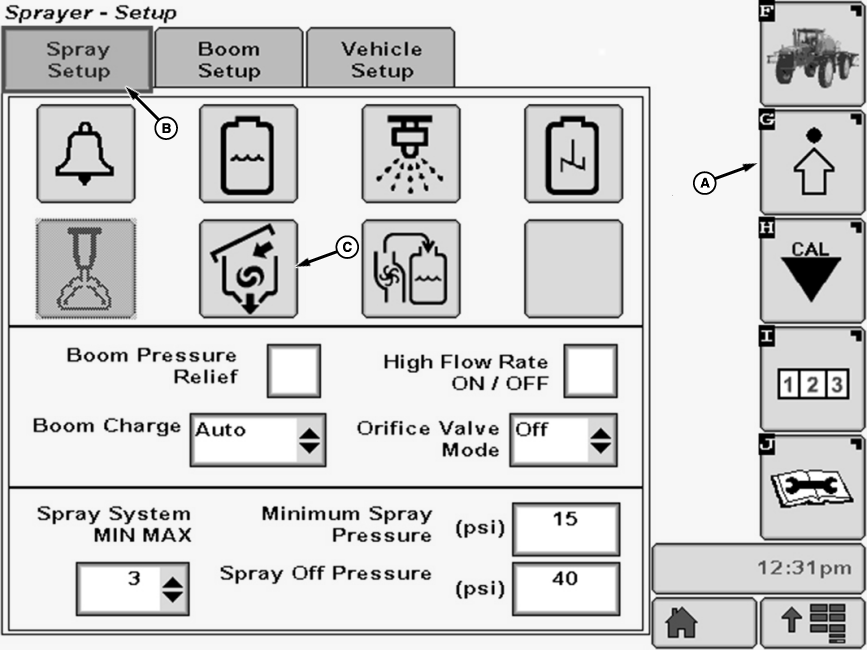

   Select the Setup softkey (A) to view the setup menu.

---




2. Select the Spray Setup tab (B).

3. Select Eductor button (C).

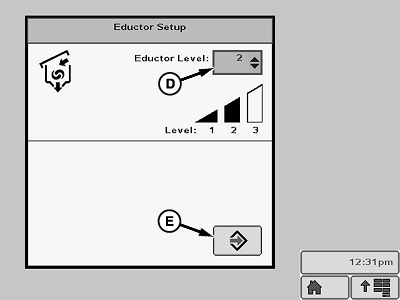

4. Select eductor rate (1-3) from drop-down box (D).

5. Select Enter button (E) to confirm.
