Enable High Flow Rate

1.

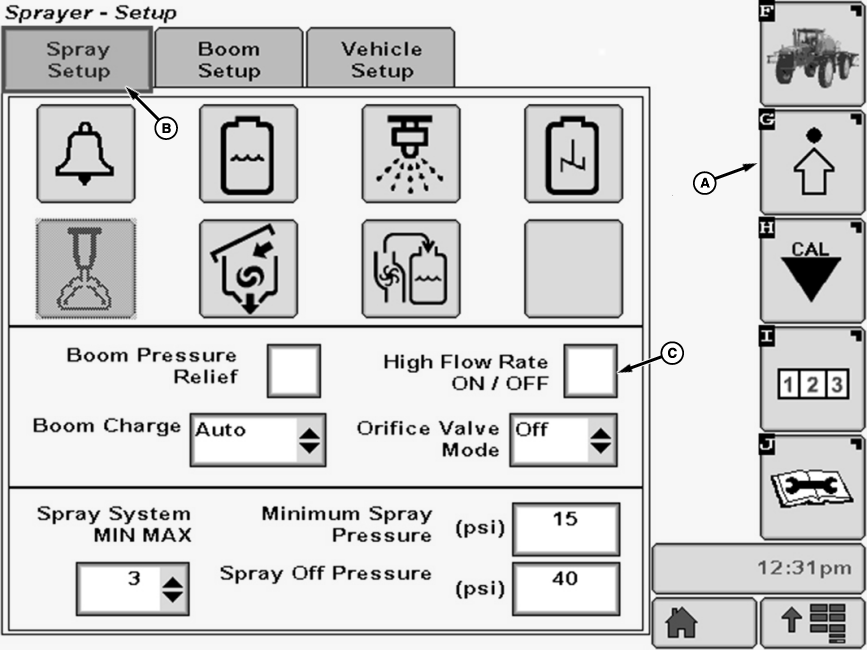

   N101910-UN-08MAY13

   A - Setup Softkey

   B - Spray Setup Tab

   C - Check Box

   Select the Setup softkey (A) to view the setup menu.

---




2. Select the Spray Setup tab (B).

3. Select check box (C) next to High Flow Rate ON / Off and a check will appear inside box indicating High Flow Rate is ON. To turn OFF, touch check box to remove the check.

   NOTE: When High flow rate is turned “ON” in SprayStar the flowmeter valve must be opened. If SprayStar and flowmeter valve settings do not agree:

   • Flowmeter valve open but SprayStar High Flow OFF” — will overapply
   • Flowmeter valve closed but SprayStar High Flow ON — will underapply
