Setup Spray Off Pressure

1. NOTE: Spray rate controller will attain the spray off pressure when master spray is off. Spray off pressure is the pressure the pump will maintain when not spraying. Spray off pressure is primarily intended to increase agitation when not spraying. It should not be used as a means for boom charge compensation.

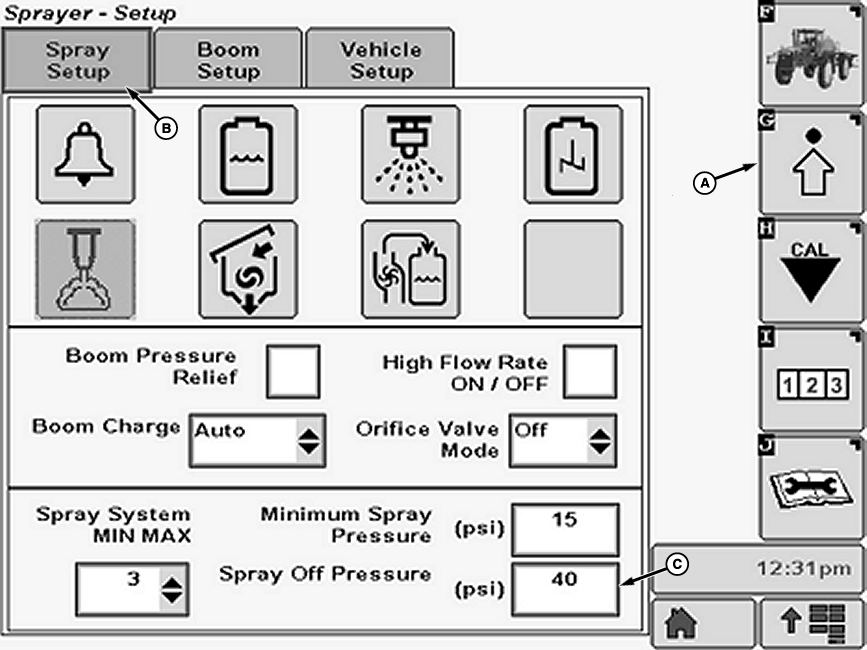

   N101913-UN-08MAY13

   A - Setup Softkey

   B - Spray Setup Tab

   C - Input Box

   Select the Setup softkey (A) to view the setup menu.

---




2. Select the Spray Setup tab (B).

3. Select input box (C) next to Spray Off Pressure (psi) and enter a new value using pop-up keyboard. Select the Enter button to accept new value.
