Reset Spray Calibrations to Factory Default Settings

1.

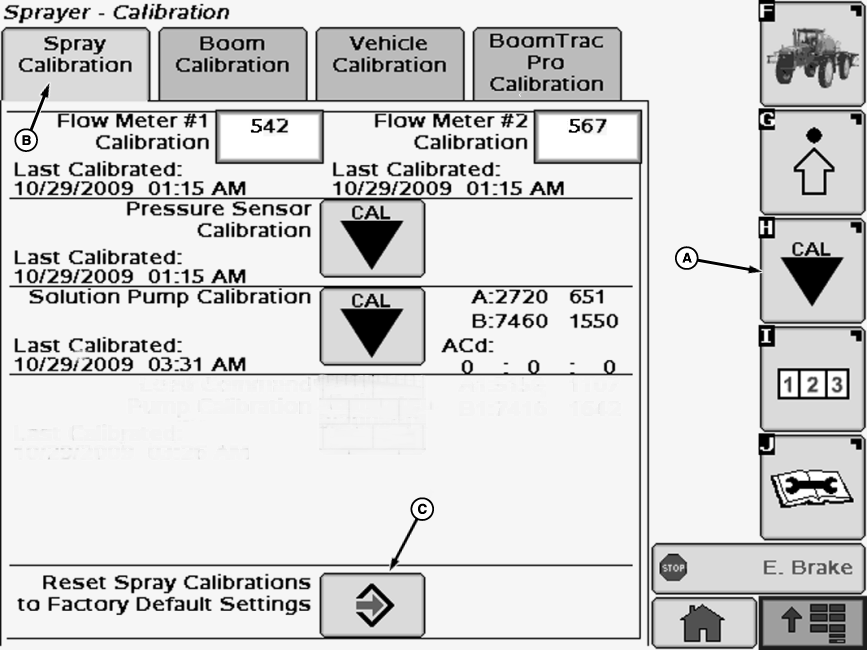

   N87487-UN-25MAR10

   A - Calibration Softkey

   B - Spray Calibration Tab

   C - Calibration Icon

   Select the Calibration softkey (A) to view the setup menu.

---




2. Select the Spray Calibration tab (B).

3. Select calibration icon (C) next to Reset Spray Calibrations to Factory Default Settings. Reset Spray Calibrations to Factory Default Settings screen will appear.

4.

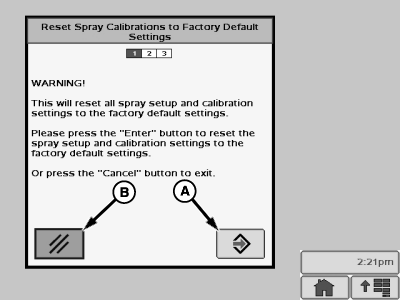

   N77310-UN-15AUG07

   A - Enter Button

   B - Cancel Button

   Follow instructions on screen. When finished select Enter button (A) to proceed with resetting calibrations to defaults or select Cancel button (B) to exit.

---
