Tilt Sensor Calibration

1.
   N101921-UN-08MAY13

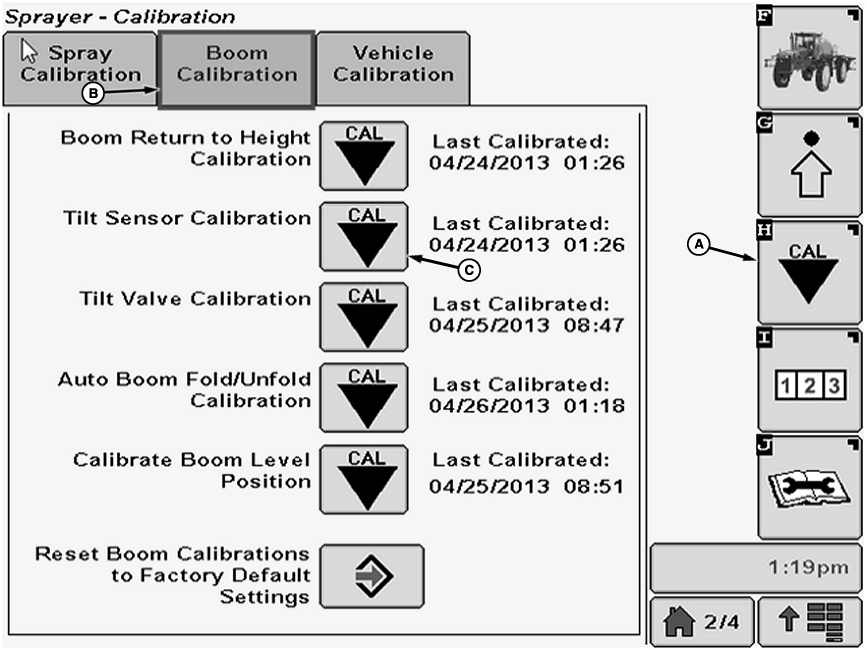

   A - Calibration Softkey

   B - Boom Calibration Tab

   C - Calibration Icon

   Select the Calibration softkey (A) to view the setup menu.

---




2. Select the Boom Calibration tab (B).

3. Select Calibration icon (C) next to Tilt Sensor Calibration.

4. Boom Tilt Valve Calibration screen will appear.

5.
   N102382-UN-12FEB13

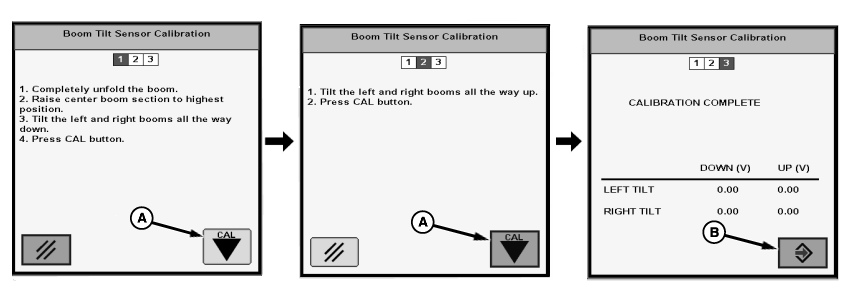

   A - Cal Icon

   B - Enter Button

   Follow instructions on first screen. When finished select Cal icon (A) to proceed to next screen.

---




6. Follow instructions on second screen. When finished select Cal icon (A) to proceed to next screen.

7. “Calibration Complete” will be displayed. Press Enter button (B) to return to Boom Calibration tab.
