Spray with Boom at 21.9 m (72 ft.)

1. NOTE:


   N99940-UN-17SEP12


   N102727-UN-08MAR13

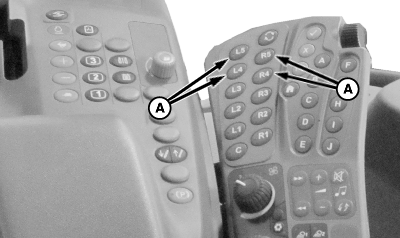

   A - Boom Section Switches

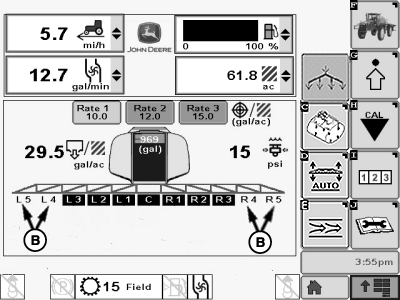

   B - Disabled Section

   36.6 m (120 ft.) boom can be folded to 21.9 m (72 ft.) if desired.

   Fold boom to 21.9 m (72 ft.). See Boom Folding—27.4, 30.5 and 36.6 m (90, 100 and 120 ft.) Booms for folding instructions.

---




2. Disable outer and breakaway sections by pressing boom section switches (A).

   NOTE: Pressing the desired boom section switch changes its status from enabled (box with black background) to disabled (box with white background) or disabled to enabled. Disabled sections (B) are shown with a clear background and no outline on the Sprayer - Main Page.

   Spray rate control automatically adjusts for spraying at 21.9 m (72 ft.).

3. Set GS3 display for spraying at 21.9 m (72 ft.). (See Set Number of Boom Sections, Number of Nozzles and Spacing in SprayStar section of this manual.)

4. To spray with entire boom, enable all boom sections and unfold boom.
