Spray with Boom at 18.3 m (60 ft.)

Spray with Boom at 18.3 m (60 ft.) Machines with 30.5 m (100 ft.) Boom

1.

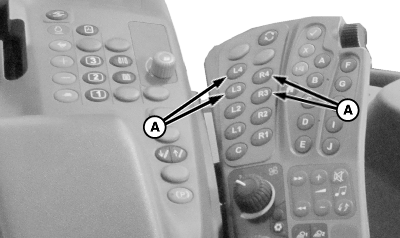

   N102730-UN-08MAR13

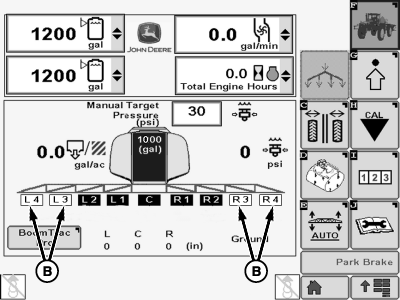

   N102728-UN-08MAR13

   A - Boom Section Switches

   B - Disabled Sections

   Fold boom to 18.3 m (60 ft.). See Boom Folding—27.4, 30.5 and 36.6 m (90, 100 and 120 ft.) Booms for folding instructions.

---




2. Select section buttons (A) to disable outer and breakaway spray sections.

   NOTE: Pressing the desired boom section button changes its status from enabled (box with black background) to disabled (box with white background) or disabled to enabled. Disabled sections (D) are shown with a clear background and no outline on the Sprayer - Main Page.

   Spray rate control automatically adjusts for spraying at 18.3 m (60 ft.).

3. Set GS3 display for spraying at 18.3 m (60 ft.). (See Set Number of Boom Sections, Number of Nozzles and Spacing in SprayStar section of this manual.)

4. To spray with entire boom, enable all boom sections, set GS3 display for full boom width, and unfold boom.

Spray with Boom at 18.3 m (60 ft.) Machines with 27.4 m (90 ft.) Boom

1.

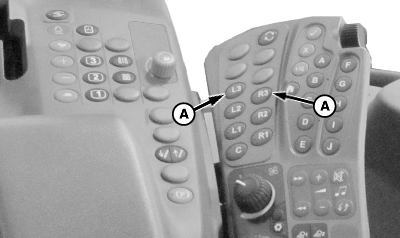

   N102731-UN-08MAR13

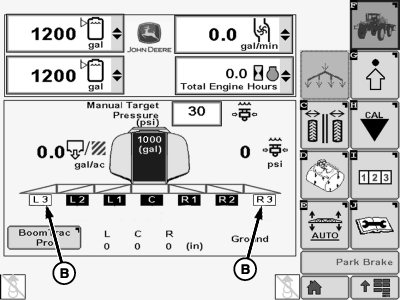

   N102729-UN-08MAR13

   A - Boom Section Switches

   B - Disabled Sections

   Fold boom to 18.3 m (60 ft.). See Boom Folding—27.4, 30.5 and 36.6 m (90, 100 and 120 ft.) Booms for folding instructions.

---




2. Select section buttons (A) to disable outer/breakaway spray sections.

   NOTE: Pressing the desired boom section button changes its status from enabled (box with black background) to disabled (box with white background) or disabled to enabled. Disabled sections (D) are shown with a clear background and no outline on the Sprayer - Main Page.

   Spray rate control automatically adjusts for spraying at 18.3 m (60 ft.).

3. Set GS3 display for spraying at 18.3 m (60 ft.). (See Set Number of Boom Sections, Number of Nozzles and Spacing in SprayStar section of this manual.)

4. To spray with entire boom, enable all boom sections, set GS3 display for full width boom, and unfold boom.
