Light Operation Table

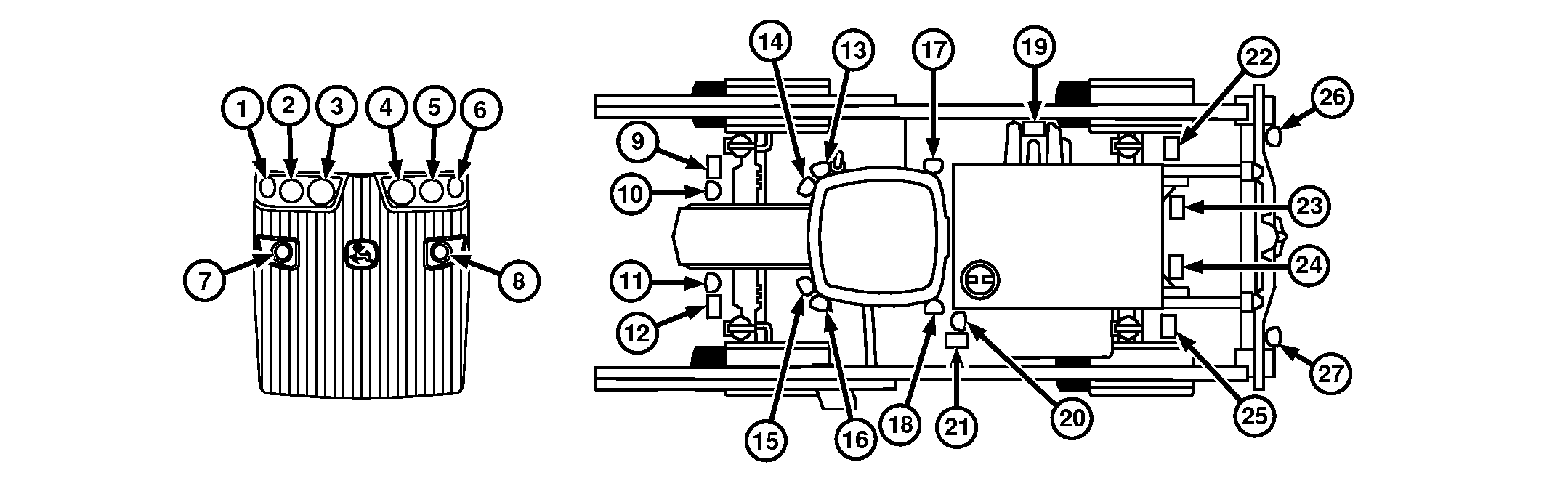

N100184-UN-13MAR13
1 - Right-Hand Front (RF) Outer Work Light
2 - Right-Hand High Beam
3 - Right-Hand Front (RF) Inner Work Light
4 - Left-Hand Front (LF) Inner Work Light
5 - Left-Hand High Beam
6 - Left-Hand Front (LF) Outer Work Light
7 - Right-Hand Low Beam
8 - Left-Hand Low Beam
9 - Right-Hand Front Warn/Turn Light
10 - Right-Hand Boom Cradle Light
11 - Left-Hand Boom Cradle Light
12 - Left-Hand Front Warn/Turn Light
13 - Right-Hand Front (RF) Outer Cab Work Light
14 - Right-Hand Front (RF) Inner Cab Work Light
15 - Left-Hand Front (LF) Inner Cab Work Light
16 - Left-Hand Front (LF) Outer Cab Work Light
17 - Right-Hand Rear (RR) Outer Cab Work Light
18 - Left-Hand Rear (LR) Outer Cab Work Light
19 - Right-Hand Platform Light
20 - Fill Station Light
21 - Left-Hand Platform Light
22 - Right-Hand Rear (RR) Warn/Turn Light
23 - Right-Hand Rear (RR) Tail Light
24 - Left-Hand Rear Tail Light
25 - Left-Hand Rear Warn/Turn Light
26 - Right-Hand Boom Light
27 - Left-Hand Boom Light
Brake lights are independent of turn or light switches. With key in “Run” position, brake lights will illuminate when the service brake is pressed or the machine decelerates at a rate of 2 m.p.h. per second or greater. Brake lights will also illuminate for 2 minutes if operating at speeds less than 1 m.p.h. speeds.
|
Road Light Switch |
Warn Switch |
Turn Signal Switch |
Left-Hand Tail Light |
Right-Hand Tail Light |
Front White Marker Light |
Left-Hand Front/Rear Warn/Turn Light |
Right-Hand Front/Rear Warn/Turn Light |
|---|---|---|---|---|---|---|---|
|
Off |
Off |
Off |
Off |
Off |
Off |
Off |
Off |
|
Off |
Off/On |
On L |
881 |
Off |
Off |
88 |
Off |
|
Off |
Off/On |
On R |
Off |
88 |
Off |
Off |
88 |
|
Off |
On |
Off |
Off |
Off |
Off |
652 |
65 |
|
Park |
Off |
Off |
On |
On |
On |
Off |
Off |
|
Park |
Off/On |
On L |
88 |
On |
On |
88 |
Off |
|
Park |
Off/On |
On R |
On |
88 |
On |
Off |
88 |
|
Park |
On |
Off |
On |
On |
On |
65 |
65 |
|
Road |
Off |
Off |
On |
On |
On |
65 |
65 |
|
Road |
Off/On |
On L |
88 |
On |
On |
88 |
Off |
|
Road |
Off/On |
On R |
On |
88 |
On |
Off |
88 |
|
Road |
On |
Off |
On |
On |
On |
65 |
65 |
|
Field 1 |
Off |
Off |
On |
On |
On |
Off |
Off |
|
Field 1 |
Off/On |
On L |
88 |
On |
On |
88 |
Off |
|
Field 1 |
Off/On |
On R |
On |
88 |
On |
Off |
88 |
|
Field 1 |
On |
Off |
On |
On |
On |
65 |
65 |
|
Field 2 |
Off |
Off |
On |
On |
On |
Off |
Off |
|
Field 2 |
Off/On |
On L |
88 |
On |
On |
88 |
Off |
|
Field 2 |
Off/On |
On R |
On |
88 |
On |
Off |
88 |
|
Field 2 |
On |
Off |
On |
On |
On |
65 |
65 |
|
Light Switch Position |
Off |
Off |
Road |
Road |
Field 1 |
Field 1 |
Field 2 |
Field 2 |
|---|---|---|---|---|---|---|---|---|
|
Dimmer Switch Position |
Low |
High |
Low |
High |
Low |
High |
Low |
High |
|
RR Tail Light |
Off |
Off |
On |
On |
On |
On |
On |
On |
|
LR Tail Light |
Off |
Off |
On |
On |
On |
On |
On |
On |
|
RF Warn/Turn Light |
Off |
Off |
65 |
65 |
Off |
Off |
Off |
Off |
|
LF Warn/Turn Light |
Off |
Off |
65 |
65 |
Off |
Off |
Off |
Off |
|
RR Warn/Turn Light |
Off |
Off |
65 |
65 |
Off |
Off |
Off |
Off |
|
LR Warn/Turn Light |
Off |
Off |
65 |
65 |
Off |
Off |
Off |
Off |
|
RF Outer Work Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
RF Inner Work Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
LF Outer Work Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
LF Inner Work Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
Right-Hand High Beam |
Off |
Off |
Off |
On |
Programmable |
Programmable |
Programmable |
Programmable |
|
Left-Hand High Beam |
Off |
Off |
Off |
On |
Programmable |
Programmable |
Programmable |
Programmable |
|
Right-Hand Low Beam |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
Left-Hand Low Beam |
Off |
Off |
On |
Off |
Off |
Off |
Off |
Off |
|
RF Outer Cab Work Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
RF Inner Cab Work Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
LF Inner Cab Work Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
LF Outer Cab Work Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
LR Outer Cab Work Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
RR Outer Cab Work Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
Right-Hand Boom Cradle Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
Left-Hand Boom Cradle Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
Right-Hand Boom Work Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
Left-Hand Boom Work Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
Right-Hand Platform Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
Left-Hand Platform Light |
Off |
Off |
Off |
Off |
Programmable |
Programmable |
Programmable |
Programmable |
|
1 Indicates the number of flashes
per minute.
|
OUO6092,0000917-19-20150121 |
