Turn Sections Off Alarm On/Off

N101900
N101900-UN-08MAY13

A - Setup Softkey

B - Spray Setup Tab

C - Alarm Setup Button

The Sections Off alarm occurs when one or more of the spray sections are disabled by the section switches when Master Spray ON/OFF switch on multifunction control handle is activated.

To turn the alarm ON or OFF:

  1. Select the Setup softkey (A) to view the setup menu.

  2. Select the Spray Setup tab (B).

  3. Press Alarm Setup button (C). The Alarm Setup screen will appear.

  4. NOTE: A check mark in the box indicates that Section Off Alarm is activated.

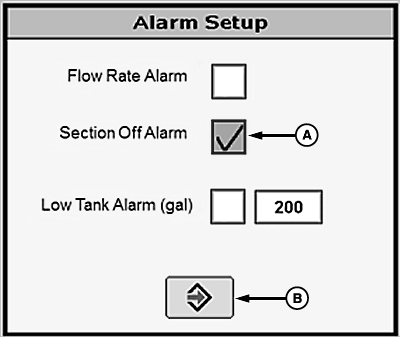

    N113705
    N113705-UN-03FEB15

    A - Check Box

    B - Enter Button

    Select check box (A) next to Section Off Alarm and a check will appear inside box activating item. To deactivate a check box, touch check box to remove the check.


  5. Select the enter button (B) to return to Spray Setup screen.

OUO6092,000091F-19-20150203
