Fill Solution Tank with Nurse Tank Pump While Adding Chemicals Through Eductor

1. CAUTION: Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals or you may be exposed to hazardous materials which could poison and injure you.

   IMPORTANT: Do not add chemical to solution tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to obtain the desired application rate and effect.

   CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap (B), make sure that Quik-Fill valve is turned off.


   N98785-UN-12JUL13

   Side Quik-Fill


   N102217-UN-16MAY13

   Front Quik-Fill


   N106683-UN-24SEP13

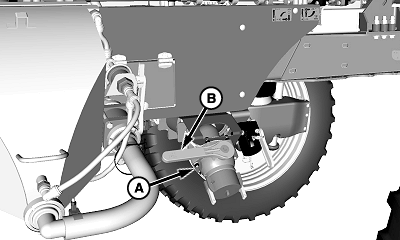

   A - Quik-Fill Valve

   B - Cap

   C - Switch

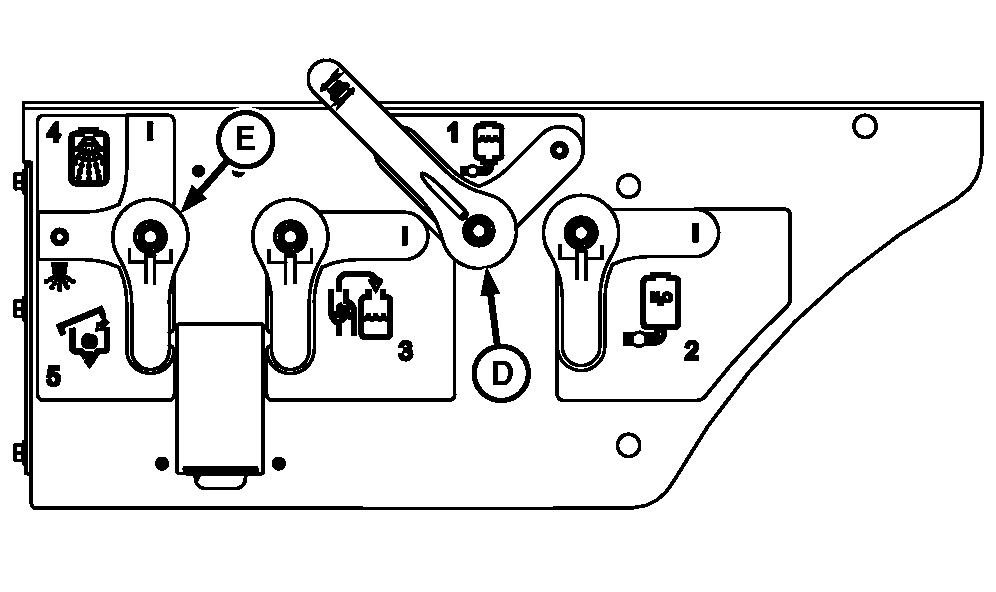

   D - Solution Tank Sump Valve

   E - Tank Rinse Nozzle/Eductor Valve

   Verify Quik-Fill valve (A) is closed.

---




2. Open lock levers and remove cap (B).

3. Connect nurse tank fill hose to Quik-Fill adapter, close lock levers, and open Quik-Fill valve.

   NOTE: For front Quik-Fill, move switch (C) to ON position.

4. Open solution tank sump valve (D).

5. NOTE: Operator must monitor solution tank content volume to prevent overfilling solution tank. When using an external pump source, the sight gauge may give erratic volume readings.  Therefore, a flowmeter is recommended to accurately monitor tank fill.

   Open nurse tank sump valve and turn on nurse pump.

6. Once solution tank reaches approximately 379 L (100 gal), set eductor/tank rinse valve (E) to eductor position.

7.
   N98892-UN-11SEP13


   N94710-UN-21SEP11

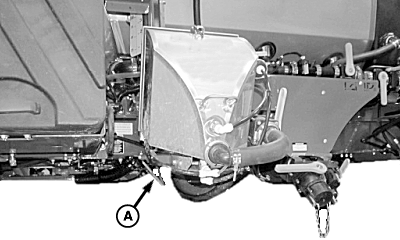

   A - Handle

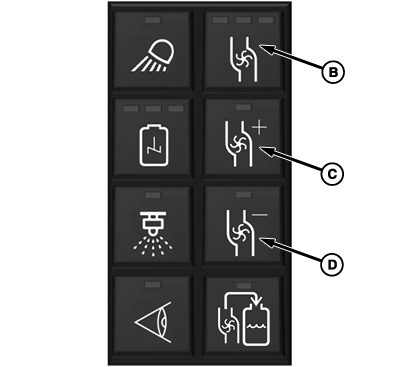

   B - Pump On-Off Button

   C - Pump Speed Increase Button

   D - Pump Speed Decrease Button

   Slightly raise eductor and pull handle (A) to unlatch.

---




8. Lower eductor and raise lid.

9. Press pump on-off button (B) on keypad.

10. Adjust pump speed if desired using button (C) to increase pump speed or button (D) to decrease pump speed.

11.
    N98795-UN-12SEP13


    N98796-UN-11SEP13


    N94711-UN-21SEP11


    N106682-UN-24SEP13

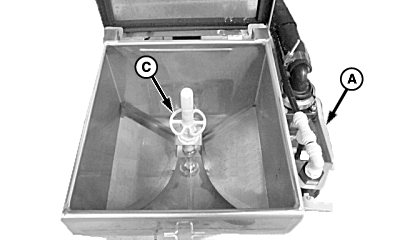

    A - Eductor Sump Valve

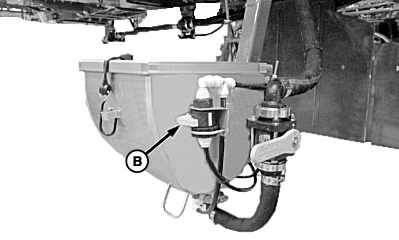

    B - Eductor Rinse Valve

    C - Rinse Nozzle

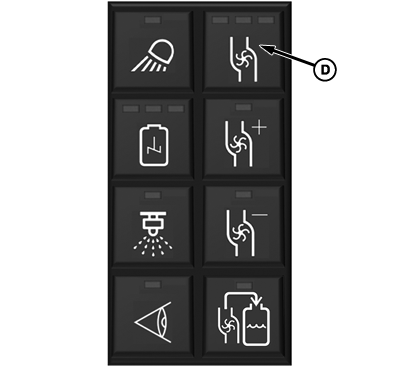

    D - Pump On-Off Button

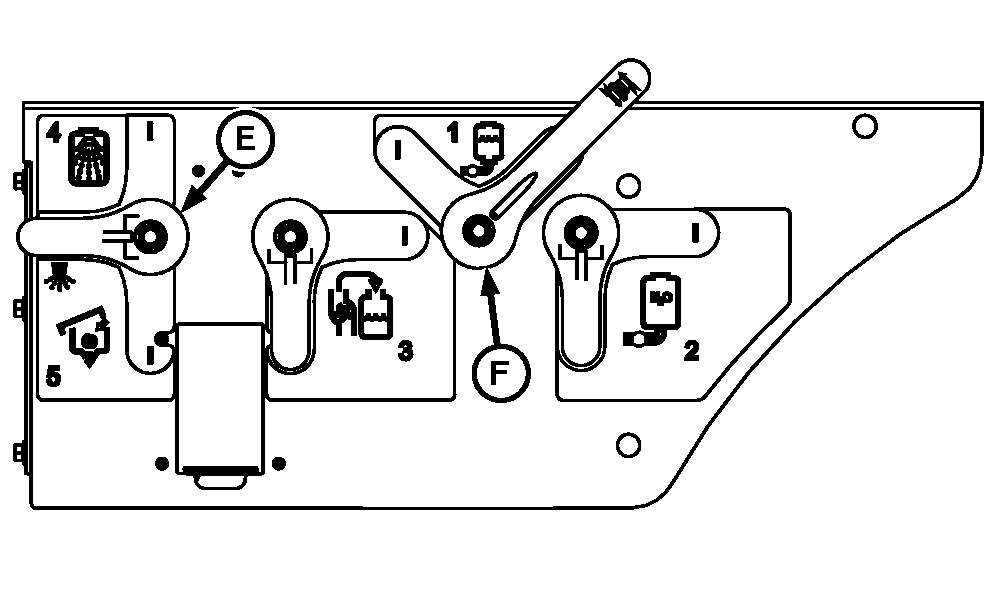

    E - Tank Rinse Nozzle/Eductor Valve

    F - Solution Tank Sump Valve

    Open eductor sump valve (A) (handle parallel with solution hose) to allow chemicals to be drawn from eductor hopper.

---




12. Open eductor rinse valve (B) (turn clockwise) to rinse eductor hopper.

13. Pour chemicals into eductor.

14. Place chemical container over rinse nozzle (C) in tank and push down on container to rinse.

15. After verifying that eductor is empty, close eductor rinse valve.

16. Close eductor sump valve.

17. Place lid back on hopper and lift eductor back to it's original position.

18. Turn off solution pump by pressing pump on-off button (D).

19. Set tank rinse nozzle/eductor valve (E) to spray position.

20. Continue to fill solution tank using nurse pump.

21. NOTE: Auto fill is not active when filling with a nurse pump.

    After solution tank has filled, shut down nurse tank pump and close nurse tank valve.

22. NOTE: For front Quik-Fill, move switch position to OFF position.

    Close Quik-Fill valve and solution tank sump valve (F).

23. Remove fill hose from Quik-Fill adapter and replace cap.
