Attach Lift Bracket

1. CAUTION: Sprayer with boom weighs approximately 16,400 kg (36,080 lb.). To avoid injury or death to you or others, lift and support an empty machine only. Only jack wheels using supplied lift bracket, 6,804 kg (7.5 ton) jack and support machine using John Deere JDG10393 shop stand or equivalent. Do not apply jack pressure at any other location on axle. Lift only one wheel at a time. Before jacking a front wheel, turn it fully outward.

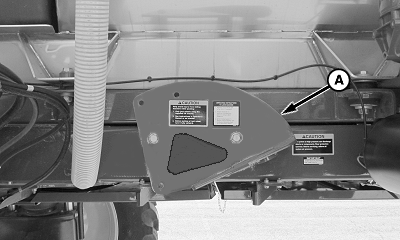

   N116117-UN-03MAR15

   R4030 and R4038 Storage Position

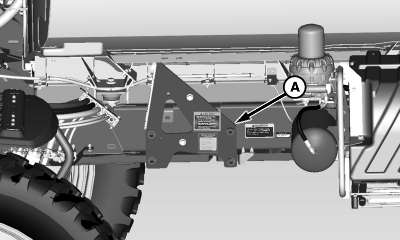

   N116118-UN-03MAR15

   R4045 Storage Position

   A - Storage Position

   Empty solution tank (if necessary).

---




2. Remove lift bracket from storage position (A) on right-hand side of machine.

3. NOTE: Retain fender mounting hardware for installation of jack plate.


   N99732-UN-17SEP12


   N99931-UN-17SEP12

   A - Cap Screws

   B - Cap Screw (3 used)

   C - Fender Mount Bracket

   Remove cap screws (A), cap screws (B), fender mount bracket (C), and fender.

---




4. CAUTION: Air spring can explode if over inflated causing serious injury or death to you or others. When adjusting suspension assemblies, do not exceed 689 kPa (6.89 bar) (100 psi). Keep hands and body away from suspension linkage.

   NOTE: JDG1781 Spindle Spacers are available from your John Deere dealer.


   N116119-UN-04MAR15

   R4030 and R4038


   N116120-UN-04MAR15

   R4045

   A - JDG1781 Spindle Spacer

   B - Jack Plate

   C - Cap Screw (3 used)

   Inflate air spring and install JDG1781 Spindle Spacer (A) on each spindle.

---




5. Deflate air spring until machine is resting on spacers.

6. Position jack plate (B) and install cap screws (C).

7. When finished using lift bracket, remove bracket and hardware.

8. Install fender in reverse order using the following special instructions:

   • Lubricate fender bracket cap screws and install. Tighten to specification.

     Item	Measurement	Specification
     Fender Bracket-to-Drive Housing Cap Screws	Torque (lubricated)	268 N·m˙ (198 lb.-ft.)




9. Return lift bracket to storage position.
