Diagnostic Readings

1.

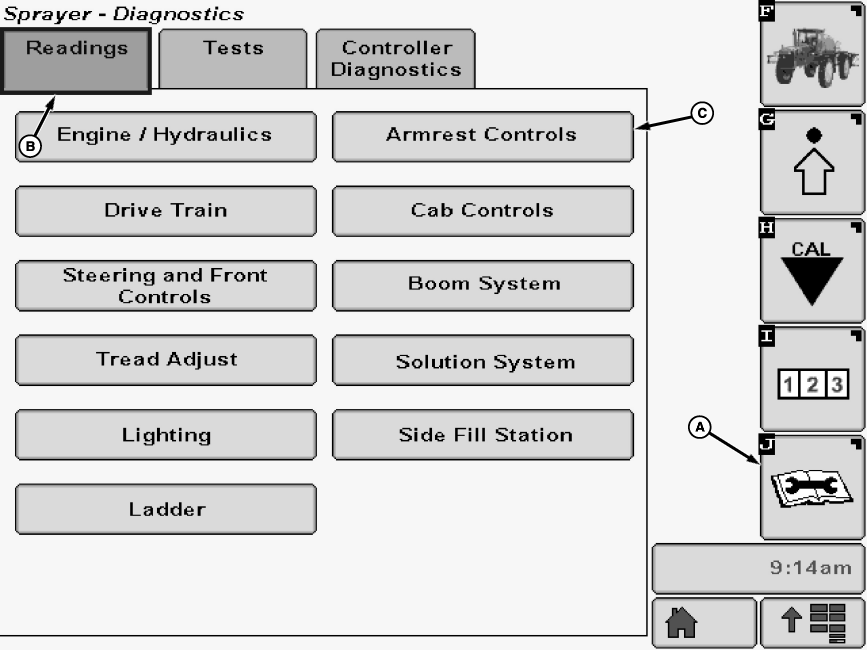

   N116124-UN-10MAR15

   A - Diagnostics Softkey

   B - Readings Tab

   C - System Button

   Select the Diagnostics softkey (A) to view the sprayer diagnostics menu.

---




2. Select the Readings tab (B).

3. Select desired system button (C).
