Warning

N89300
N89300-UN-03SEP10

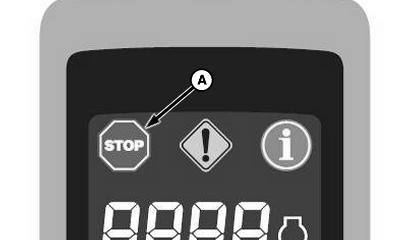

A - Stop Lamp

The stop lamp (A) lights and flashes on the primary display unit. The SPRAYSTAR display is cleared and a full-page warning message appears.

Warning alarms are set by a controller to indicate a warning to the operator to stop the machine or damage could occur. Warnings are shown as a full page on the display with a continuous audible alarm until the alarm goes away.

A continuous audible alarm is sounded.

OUO6092,0000956-19-20150310
