Set Product CFR

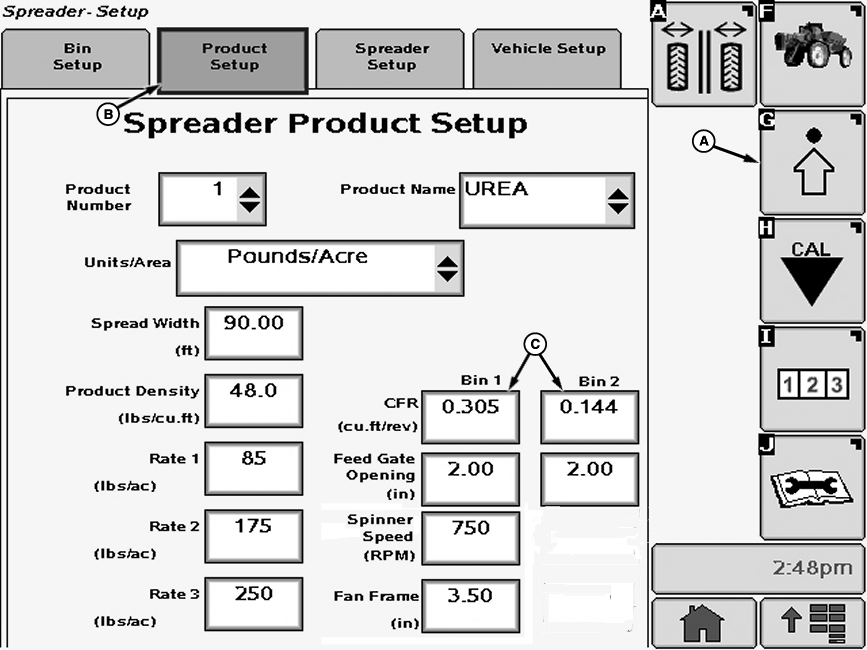

N82571-UN-08DEC08
A - Setup Softkey
B - Product Setup Tab
C - Input Boxes
Conveyor Feed Rate (CFR) is the volume of product in cm3 spread per revolution of the belt drive roller at a feed gate opening of 1.0 cm (cu. ft. per revolution at 1.0 in. feed gate opening).
-
Select the Setup softkey (A).
-
Select the Product Setup tab (B). Spreader Product Setup screen appears.
-
Select input boxes (C) to input the theoretical CFR for your spreader model. This value is provided in the table below. A numeric key pad appears to input the value. Press “Enter” button on keypad to accept the new value.
|
Theoretical CFR Values |
||||||||||
|
CFR (metric)1 |
CFR (English)2 |
Conveyor Type |
Model |
|||||||
|
3400 |
0.305 |
Straight Belt |
Model NL200G4 |
|||||||
|
2854 |
0.256 |
Belt Over Chain |
||||||||
|
3400 |
0.305 |
Straight Belt |
Model NL300G4 |
|||||||
|
1605 |
0.144 |
Belt Over Chain |
MultApplier Box |
|||||||
|
1 Based on 1.0 cm feed gate opening
|
OUO6092,0000957-19-20150310 |
