Calculate Feedgate Opening

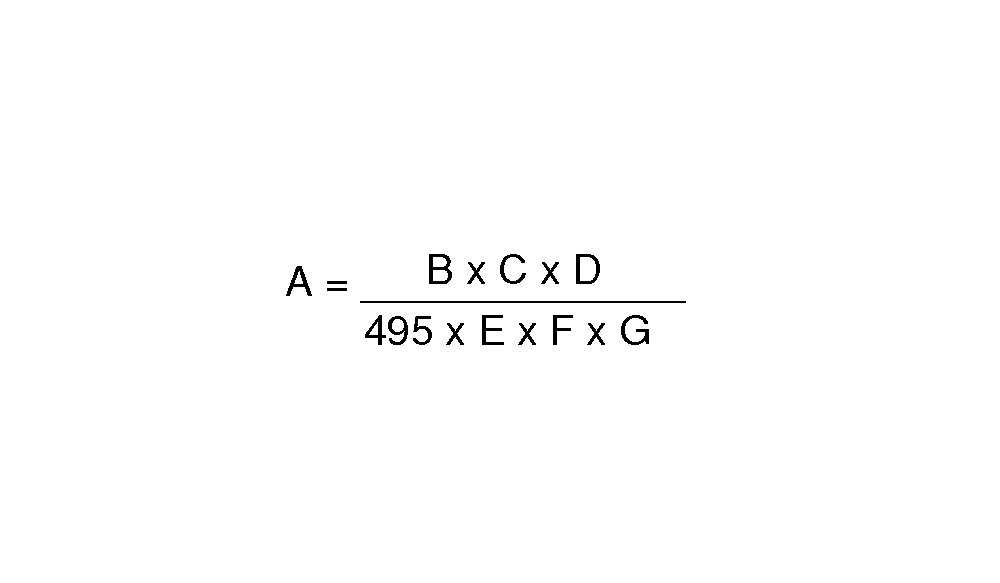

N79290-UN-07DEC07

Equation for English Measurement

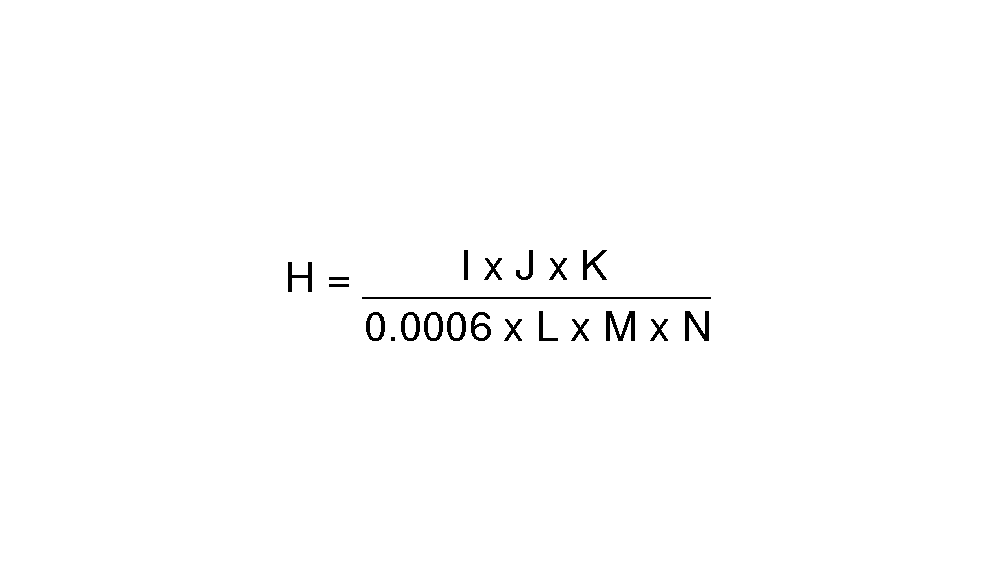

N82406-UN-18NOV08

Equation for Metric Measurement

A - Feedgate Opening (in.)

B - Yield in (lb./acre)

C - Spread Width (ft.)

D - Average Speed (mph)

E - Conveyor Shaft Revolutions per Minute (CRPM)

F - Material Weight in (lb./cu. ft.)

G - Theoretical CFR (Conveyor Rate) (cu. ft. per revolution)

H - Feedgate Opening (cm)

I - Yield (kg/ha)

J - Spread Width (m)

K - Average Speed (km/h)

L - Conveyor Shaft Revolutions per Minute (CRPM)

M - Material Weight (kg/m³)

N - Theoretical CFR (Conveyor Rate) (cm³per revolution)

If feedgate opening is not supplied with fertilizer ticket, use the appropriate equation (English or metric) to calculate correct opening.

Equations can also be used to calculate conveyor speed required for a desired application rate and feed gate opening.

NOTE: To verify CRPM, mark conveyor shaft and run spreader in manual mode with current settings.

Theoretical CFR Values
CFR (metric)1	CFR (English)2	Conveyor Type						Model
3400	0.305	Straight Belt						Model NL200G4
2854	0.256	Belt Over Chain
3400	0.305	Straight Belt						Model NL300G4
1605	0.144	Belt Over Chain						MultApplier Box
