Fill Solution Tank with Solution Pump

1. CAUTION: Read carefully the directions printed on the chemical manufacturer's labels before handling chemicals or you may be exposed to hazardous materials which could poison and injure you.

   IMPORTANT: Do not add chemical to tank until just before field use. Follow the chemical manufacturer's instructions for mixing the spray solution to obtain the desired application rate and effect.

   CAUTION: Quik-Fill valve (A) can contain hazardous materials which can poison causing serious injury or death to you or others. Before removing Quik-Fill cap (B), make sure Quik-Fill valve is turned off.


   N98792-UN-12JUL13

   Side Quik-Fill


   N106677-UN-24SEP13


   N116127-UN-11MAR15

   A - Quik-Fill Valve

   B - Cap

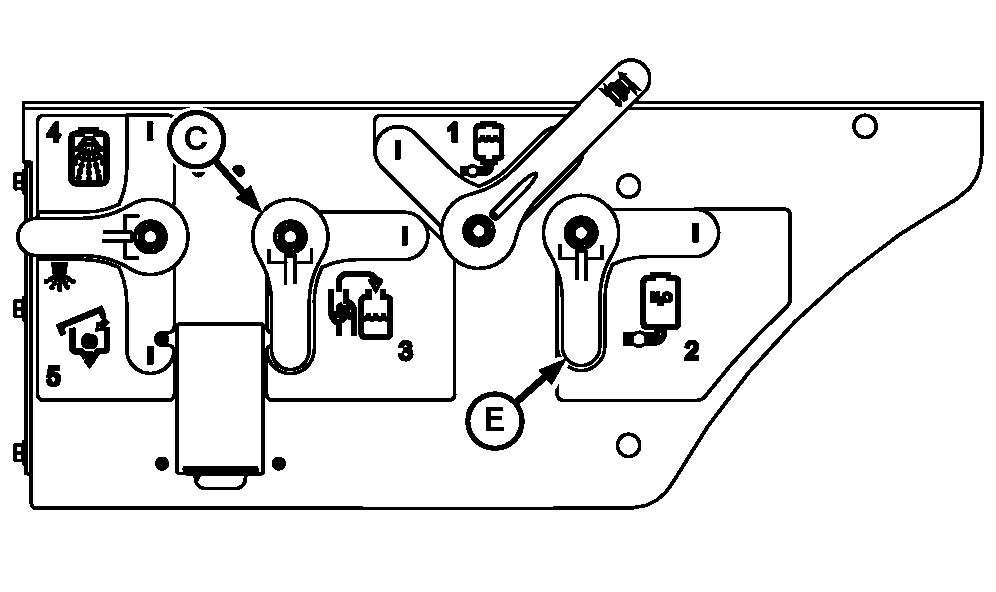

   C - Bypass Valve

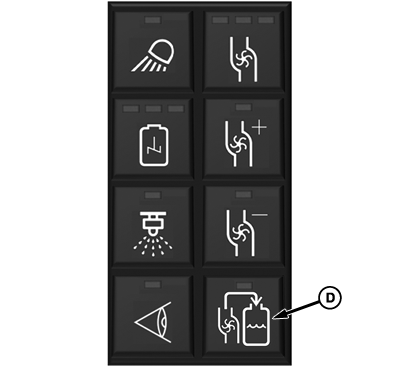

   D - Pull-On Fill Button

   E - Rinse Tank Sump Valve

   Verify Quik-Fill valve is closed.

---




2. Open lock levers and remove cap.

3. Connect nurse tank fill hose to Quik-Fill adapter, close lock levers.

4. Open nurse tank and Quik-Fill valves.

5. Close solution tank sump valve.

6. Open bypass valve (C).

7. Press pull-on button (D).

   NOTE: User must monitor solution tank content volume using sight gauge to prevent overfilling solution tank.

   Rinse tank sump valve (E) can be opened to aid in priming solution pump. Once pump is primed close rinse tank sump valve.

8. Press pull-on button to stop fill when desired level is reached.

9. After solution tank has filled, close bypass valve.

10. Close nurse tank and Quik-Fill valves.

11. Remove fill hose from Quik-Fill adapter and replace cap.

12. Open solution tank sump valve before spraying.
