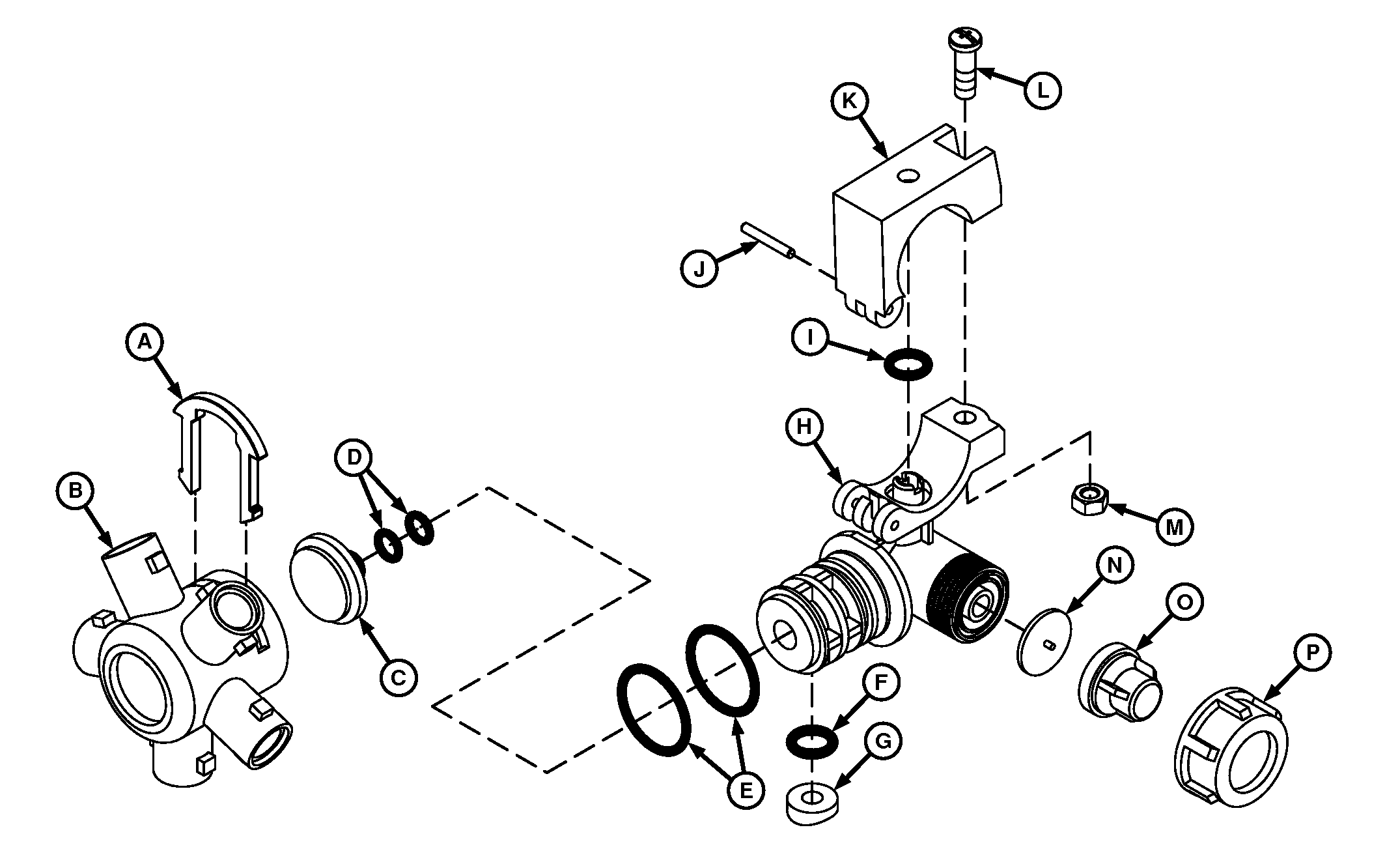

Clean SprayMaster 5-Position Nozzle Bodies—Standard Flow

N80144-UN-07MAR08

A - Retainer

B - Tip Holder

C - Plug

D - O-Rings

E - O-Rings

F - O-Ring

G - Seal

H - Nozzle Body

I - O-Ring

J - Pin

K - Clamp

L - Screw

M - Nut

N - Diaphragm

O - Check Valve

P - Cap

CAUTION: Keep spare nozzle tips for field replacement. DO NOT clean nozzle tips by placing in mouth and blowing or you could swallow or inhale hazardous chemicals which will poison, causing serious injury or death to you or others.

IMPORTANT: Do not allow solvent or diesel fuel to contact rubber washers in caps as it will cause deterioration.

NOTE: Service life of plastic nozzle tips can be greatly extended through careful cleaning. Do not use metal tools for cleaning as they can scratch hardened surfaces which will accelerate wear and shorten service life.

After cleaning body, apply a silicone based lubricant to large O-ring on body.
