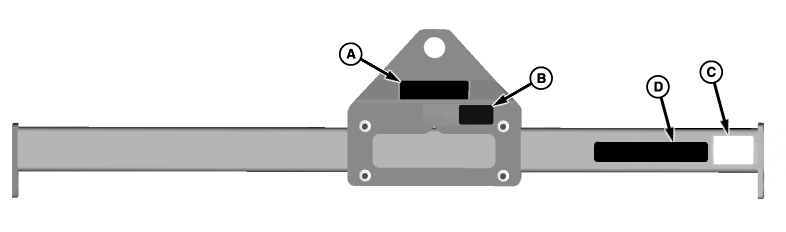

Lift Bar Decals
N116132-UN-25MAR15
Lift Bar
SSN317012-UN-19JUN08

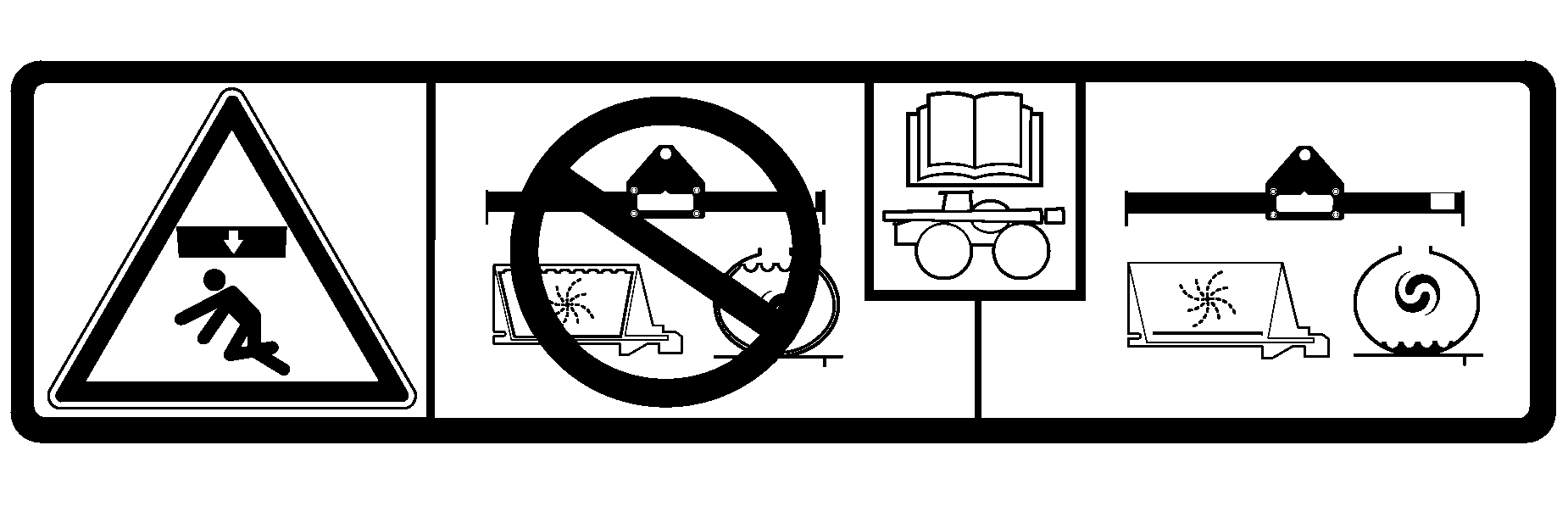

Decal A
Warning! Avoid serious injury or death resulting from crushing during solution tank skid and dry box removal and installation.
- Use only for John Deere 4 Series sprayer solution tank skid and dry box.
- Empty application system prior to installation and removal processes.
- Stay clear of application system during installation and removal processes.
- Follow instructions included with lift bar.
SSN317056-UN-19JUN08

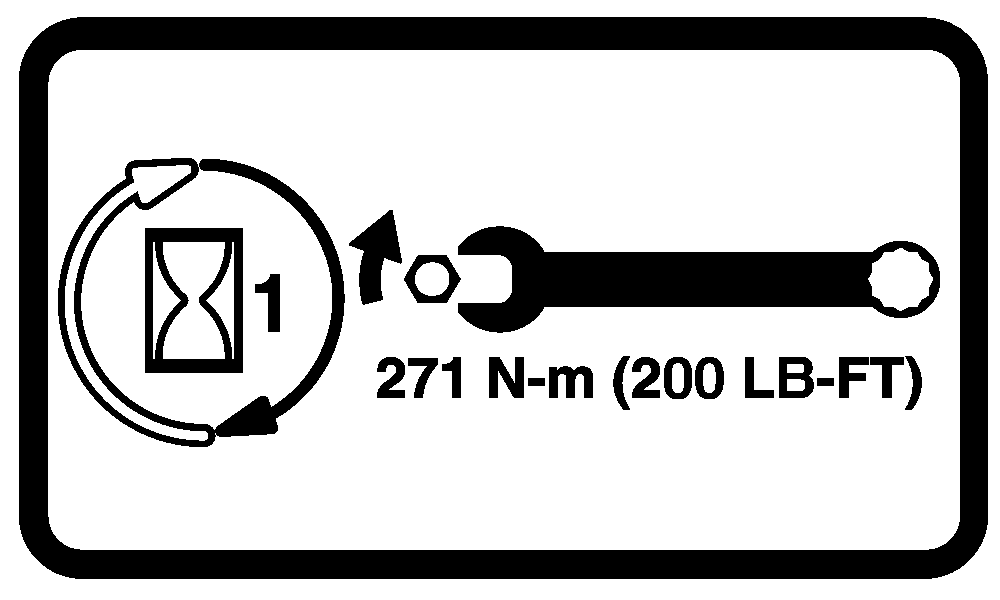

Decal B
SSN317016-UN-19JUN08

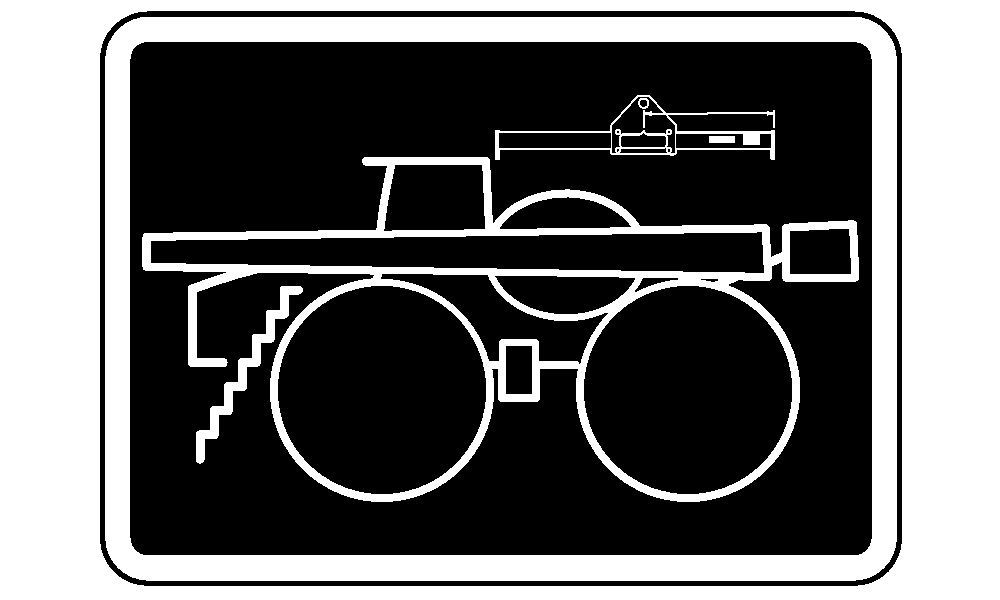

Decal C
Decal B—
IMPORTANT: Torque each bolt to 200 lb-ft (271 N·m). Retorque before each time of use and after each time bolts are loosened.
Decal C—
To rear of machine
N106668-UN-18SEP13

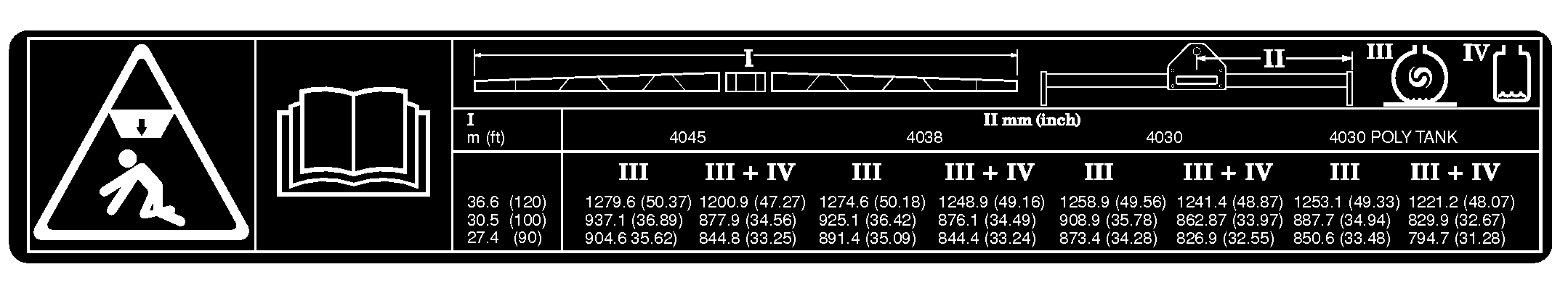

Decal D
Warning! Avoid serious injury or death resulting from crushing during solution module and dry box removal and installation. Below are lifting dimensions by model:
|
4030 Lift Bar Adjustment Without DI |
4030 Lift Bar Adjustment With DI |
||
|---|---|---|---|
|
Boom Size |
Dimension (B) |
Boom Size |
Dimension (B) |
|
27.4 m (90 ft.) |
873 mm (34 in.) |
27.4 m (90 ft.) |
827 mm (33 in.) |
|
30.5 m (100 ft.) |
907 mm (36 in.) |
30.5 m (100 ft.) |
863 mm (34 in.) |
|
36.6 m (120 ft.) |
1259 mm(50 in.) |
36.6 m (120 ft.) |
1241 mm (49 in.) |
|
Dry Spreader |
(See New Leader installation instructions.) |
Dry Spreader |
(See New Leader installation instructions.) |
|
4030 POLY TANK Lift Bar Adjustment Without DI |
4030 POLY TANK Lift Bar Adjustment With DI |
||
|---|---|---|---|
|
Boom Size |
Dimension (B) |
Boom Size |
Dimension (B) |
|
27.4 m (90 ft.) |
851 mm (34 in.) |
27.4 m (90 ft.) |
795 mm (31 in.) |
|
30.5 m (100 ft.) |
888 mm (35 in.) |
30.5 m (100 ft.) |
830 mm (33 in.) |
|
36.6 m (120 ft.) |
1253 mm (49 in.) |
36.6 m (120 ft.) |
1221 mm (48 in.) |
|
Dry Spreader |
(See New Leader installation instructions.) |
Dry Spreader |
(See New Leader installation instructions.) |
|
4038 Lift Bar Adjustment Without DI |
4038 Lift Bar Adjustment With DI |
||
|---|---|---|---|
|
Boom Size |
Dimension (B) |
Boom Size |
Dimension (B) |
|
27.4 m (90 ft.) |
891 mm (35 in.) |
27.4 m (90 ft.) |
844 mm (33 in.) |
|
30.5 m (100 ft.) |
925 mm (36 in.) |
30.5 m (100 ft.) |
876 mm (34 in.) |
|
36.6 m (120 ft.) |
1275 mm (50 in.) |
36.6 m (120 ft.) |
1249 mm (49 in.) |
|
Dry Spreader |
(See New Leader installation instructions.) |
Dry Spreader |
(See New Leader installation instructions.) |
|
R4045 Lift Bar Adjustment Without DI |
R4045 Lift Bar Adjustment With DI |
||
|---|---|---|---|
|
Boom Size |
Dimension (B) |
Boom Size |
Dimension (B) |
|
27.4 m (90 ft.) |
904.6 mm (35.62 in.) |
27.4 m (90 ft.) |
844.8 mm (33.25 in.) |
|
30.5 m (100 ft.) |
937.1 mm (36.89 in.) |
30.5 m (100 ft.) |
877.9 mm (34.56 in.) |
|
36.6 m (120 ft.) |
1279.6 mm (50.37 in.) |
36.6 m (120 ft.) |
1200.9 mm (47.27 in.) |
|
Dry Spreader |
(See New Leader installation instructions.) |
Dry Spreader |
(See New Leader installation instructions.) |
|
OUO6092,0000978-19-20150325 |
