Lubricate Boom Lift Arm Pins—Daily

NOTE:

N102003
N102003-UN-08FEB13

Front Grease Fittings

N102004
N102004-UN-13JUN13

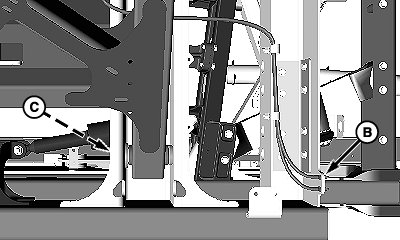

Rear Grease Fittings

A - Front Grease Fittings

B - Grease Bank

C - Grease Fitting

Left-hand side shown, right-hand side similar.

Lubricate boom lift arm pivots with John Deere SD Polyurea Grease daily using front grease fittings (A), grease bank (B) and grease fitting (C).

OUO6092,000097B-19-20150327
