Remove and Install Service Brake Caliper

1.

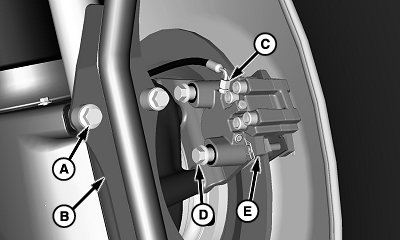

   N102418-UN-01MAR13

   A - Cap Screw (3 used)

   B - Fender

   C - Hydraulic Line

   D - Cap Screw (2 used)

   E - Brake Caliper

   Park machine on a flat level surface.

---




2. Remove cap screws (A) and fender (B).

3. Disconnect hydraulic line (C), cap screws (D) and caliper (E).

4. Install in reverse order using the following special instructions:

   • Tighten caliper mounting cap screws to specification.

     Item	Measurement	Specification
     Brake Caliper Mounting Cap Screws	Torque (lubricated)	271 N·m (200 lb.-ft.)

   • Lubricate fender mount-to-drive mount housing cap screws with clean engine oil or 10W30 oil used for hydrostatic system and install. Tighten to specification.

     Item	Measurement	Specification
     Fender Mount-to-Drive Mount Cap Screws	Torque (lubricated)	268 N˙m (198 lb-ft)

   • Perform service brake bleeding procedure. (See Bleed Service Brakes in this section.)
