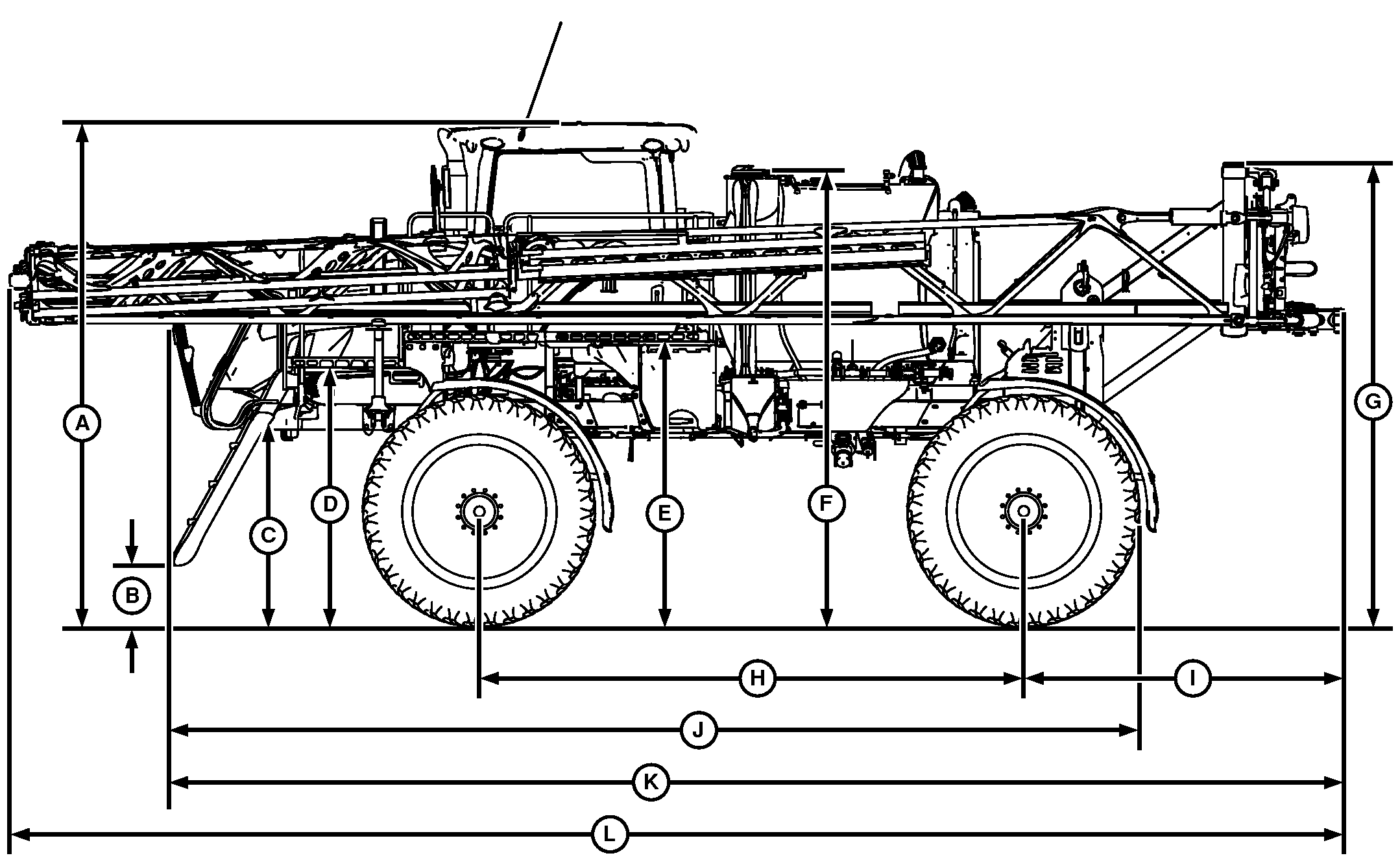

Standard Machine Dimensions

N103396-UN-16MAR15

				R4030 / R4038		R4045
Springs Inflated	Height at cab roof (A)			3943 mm	155.25 in.	3918 mm	154.25 in.
	Height at GPS receiver (if equipped)			4064 mm	160.0 in.	4039 mm	159.0 in.
	Highest point on boom in cradled position (G)			3937 mm	155.0 in.	3975 mm	156.50 in.
	Highest point on solution tank (F)			3531 mm	139.0 in.	3556 mm	140.0 in.
	Highest point on rinse tank (F)			NA	NA	3962 mm	156.0 in.
Springs Deflated	Height at cab roof (A)			3829 mm	150.75 in.	3829 mm	150.75 in.
	Height at GPS receiver (if equipped)			3950 mm	155.50 in.	3950 mm	155.50 in.
	Highest point on boom in cradled position (G)			3861 mm	152.0 in.	3853 mm	151.0 in.
	Highest point on solution tank (F)			3442 mm	135.50 in.	3442 mm	135.50 in.
	Highest point on rinse tank (F)			NA	NA	3823 mm	150.50 in.
Bottom of ladder (B)				533 mm	21.0 in.	533 mm	21.0 in.
Under frame clearance (C)				1448 mm	57.0 in.	1448 mm	57.0 in.
First platform step (D)				2013 mm	79.25 in.	2013 mm	79.25 in.
Second platform step (E)				2235 mm	88.0 in.	2235 mm	88.0 in.
Wheelbase (H)				4300 mm	169.30 in.	4300 mm	169.30 in.
Tire Center-to-Rearmost Boom Point (I)				2642 mm	104.0 in.	2642 mm	104.0 in.
Front of Machine-to-Rear of Rear Tire (J)				7353 mm	289.50 in.	7353 mm	289.50 in.
Front of Machine-to-Rearmost Boom Point (K)				9055 mm	356.50 in.	9055 mm	356.50 in.
Boom Tip-to-Rearmost Boom Point—36.6 m (120 ft.) Boom Folded (Maximum Machine Length) (L)				10795 mm	425.0 in.	10795 mm	425.0 in.

NOTE: Refer to dimensions (A and L) for standard machine maximums when transporting machine.

Dimensions for bareback and dry box machines are within those shown for the machine with wet system.
