Layout Manager

PC9033
PC9033-UN-17APR06

Home Softkey

The Layout Manager provides the operator the ability to display user-defined screens in the home page layout. Once these screens are configured, the display will return to the configuration anytime the Home softkey is pressed.

PC8663
PC8663-UN-29APR15

MENU button

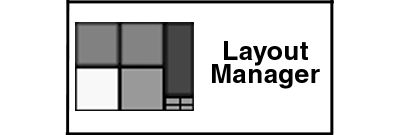

PC8656
PC8656-UN-17NOV05

NOTE: Original GreenStar Monitor Mode is only available in layout manager option A and F. Vehicle Bus is only available in layout manager option A.

Select Menu, then select Softkey I which is the Layout Manager Option.

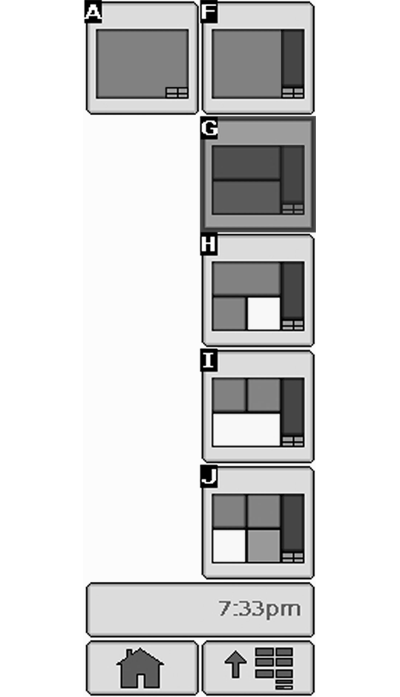

PC8870
PC8870-UN-17NOV05

Press softkey A, then press the large red area in main screen, this will bring you to the selection of programs to operate in that defined red area. You will see that Layout Manager A and F will have the largest selection of choices and layouts available.

PC8649
PC8649-UN-01NOV05

ENTER Button

PC8582
PC8582-UN-01NOV05

CLEAR Button

If you are satisfied with the selection, press the ENTER button. If the selection is not what was intended, press the large block area again or press the CANCEL button to start over.

Layout Manager Options with Example Layouts

PC9034
PC9034-UN-17APR06

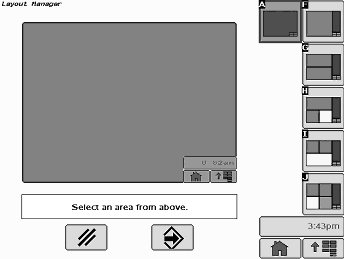

Layout Manager Option A

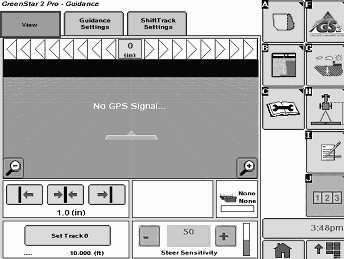

PC9035
PC9035-UN-17APR06

Example of Layout Option A

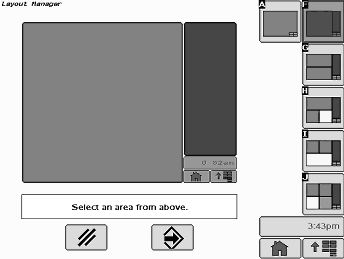

PC9036
PC9036-UN-17APR06

Layout Manager Option F

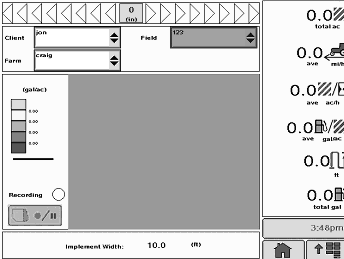

PC9037
PC9037-UN-17APR06

Example of Layout Option F

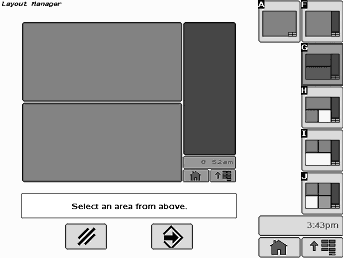

PC9038
PC9038-UN-17APR06

Layout Manager Option G

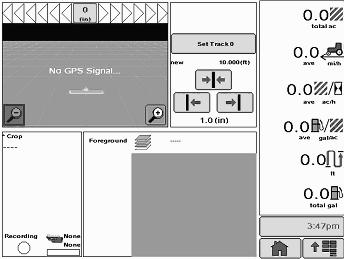

PC9039
PC9039-UN-17APR06

Example of Layout Option G

PC9040
PC9040-UN-17APR06

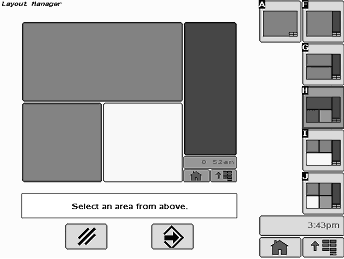

Layout Manager Option H

PC9041
PC9041-UN-17APR06

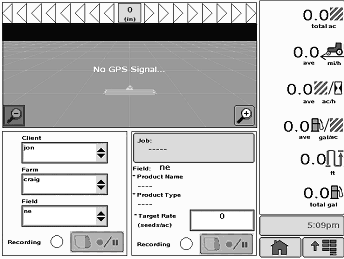

Example of Layout Option H

PC9042
PC9042-UN-17APR06

Layout Manager Option I

PC9043
PC9043-UN-17APR06

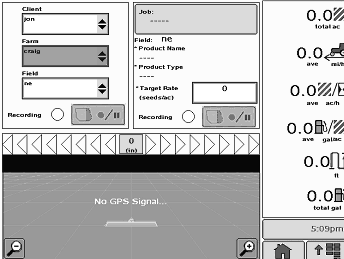

Example of Layout Option I

PC9044
PC9044-UN-17APR06

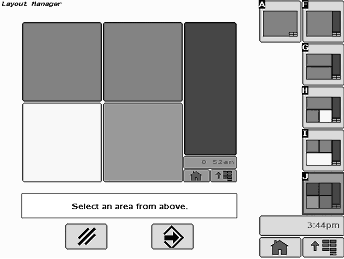

Layout Manager Option J

PC9045
PC9045-UN-17APR06

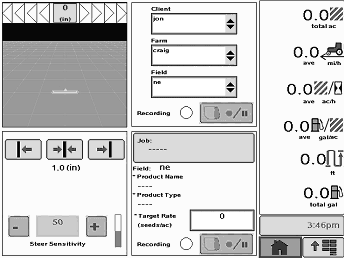

Example of Layout Option J

IMPORTANT: When setting up the display with vehicle key in the accessory position (power on, engine off), turn key to OFF position for 20 seconds BEFORE starting the vehicle. This will ensure the setup data is saved to the data card prior to operating.

If the vehicle is running during setup and programming, turn the vehicle off with key in the OFF position and wait 30 seconds before restarting. This ensures that all data is saved to the data card.

DO NOT turn the key to the start position directly from the accessory position. The reduction in voltage during the starting phase could result in a loss of all setup data.

NOTE: The Original GreenStar Monitor function is only available as a full screen.

OUO6092,0000D44-19-20081112
