Safety Features

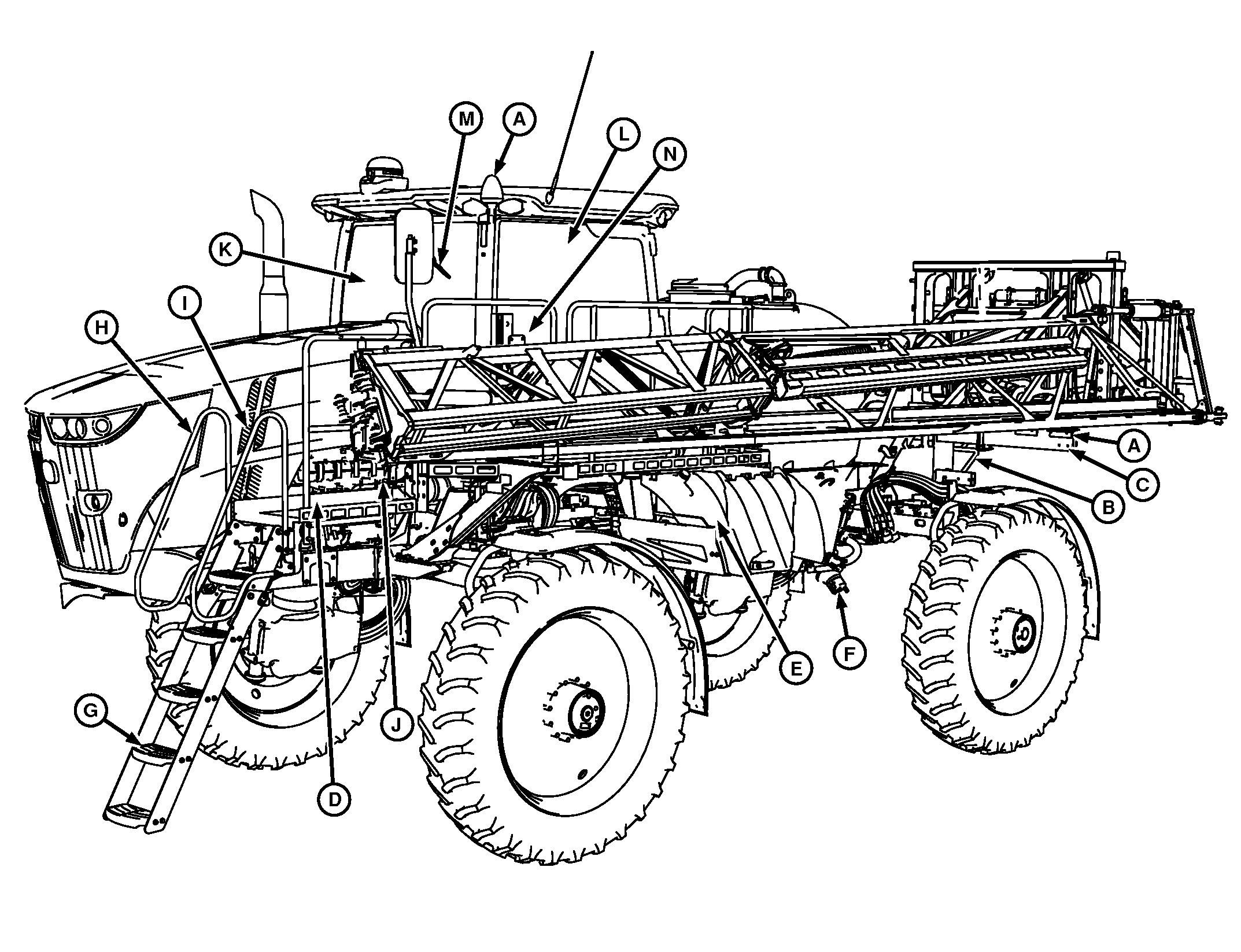

N98807-UN-02JUL12

A - FRONT AND REAR HAZARD LIGHTS—Alerts oncoming and following traffic of your presence on roads.

B - SMV EMBLEM—Alerts following traffic of your presence on roads.

C - REFLECTORS ON BOOM—Alerts following traffic of your presence on roads.

D - SLIP RESISTANT SURFACES—Helps prevent slippage when walking on platform.

E - CLEAN WATER TANK—Provides a supply of clean water for in-field cleaning and emergency situations when working with chemicals.

F - GROUND LEVEL FILLING—Allows operator to add chemicals at ground level which helps prevent spilling or splattering.

G - DIVOTTED STEPS AND PLATFORMS—Helps prevent slipping when on platform or ladders, also diminishes dirt and mud build up.

H - HAND RAILS—Gives support when climbing onto machine or walking on platforms.

I - FAN GUARDING—Protection from Engine Fan.

J - STARTER SOLENOID SHIELDING—For bypass start prevention.

K - EMERGENCY EXIT—Exit from right side of cab if required.

L - TRACTOR STYLE CAB WITH SEAT BELT— For operator comfort.

M - WINDSHIELD WIPERS AND LARGE REARVIEW MIRRORS—For clear view of surroundings.

N - AUTOMATIC PARK—Shifts automatically into park when machine stops.

In addition to the safety features described here, other components and systems, safety signs on the machine, safety messages in the Operator's Manual and elsewhere, as well as the care and concern of a capable operator, contribute to the safety of operators and others nearby.
