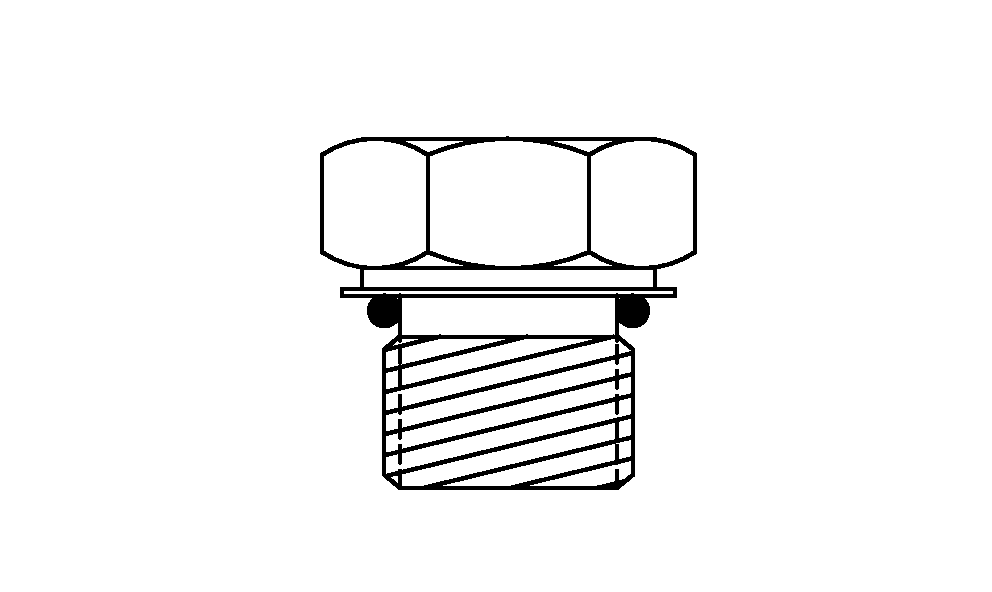

External Hexagon Port Plug Torque Chart

H70356-UN-30NOV01

Port or Stud End Thread Size1	Torque +15%/-20%
M8 x 1	10 N˙m (89 lb-in.)
M10 x 1	17 N˙m (150 lb-in.)
M12 x 1,5	28 N˙m (20.6 lb-ft)
M14 x 1,5	39 N˙m (28.7 lb-ft)
M16 x 1,5	48 N˙m (35.4 lb-ft)
M18 x 1,5	60 N˙m (44.2 lb-ft)
M20 x 1,5	60 N˙m (44.2 lb-ft)
M22 x 1,5	85 N˙m (62.7 lb-ft)
M27 x 2	135 N˙m (99.6 lb-ft)
M30 x 2	165 N˙m (121.7 lb-ft)
M33 x 2	235 N˙m (173.3 lb-ft)
M38 x 2	245 N˙m (180.7 lb-ft)
M42 x 2	260 N˙m (191.8 lb-ft)
M48 x 2	290 N˙m (213.9 lb-ft)
M60 x 2	330 N˙m (243.4 lb-ft)
