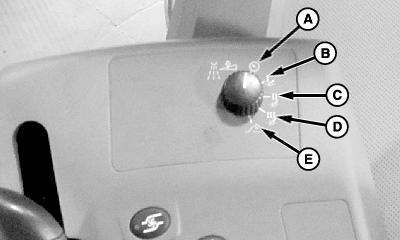

Rate Selection Switch

N98749
N98749-UN-17SEP12

A - Manual Position

B - Rate 1 Position

C - Rate 2 Position

D - Rate 3 Position

E - “AUX” Position

Rate selection switch is used to select between three operator programmed target rates or manual targeted pressure (independent of speed) in SprayStar™ system.

NOTE: “AUX” position is used for map based spraying (if equipped)

SprayStar is a trademark of Deere & Company

RG53986,00012E1-19-20130604
