Operate Secondary Brake

N94253-UN-17SEP12

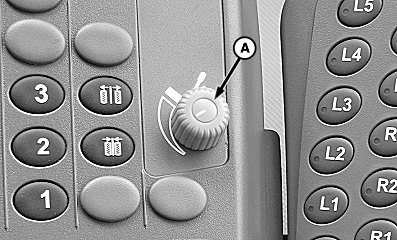

A - Modulated Secondary Brake Dial

In the event that primary (hydro) and service (brake pedal) systems are not operating correctly, turn modulated secondary brake dial (A).

IMPORTANT: The secondary brake engages the park brake system. Engaging secondary brake system while machine is moving causes significant wear to the park brake components. Park brakes will need to be tested to verify proper operation after using the secondary brake. (See Verify Proper Operation Of Park Brakes in Operating The Machine section.)
