IBS Index Boom Section Buttons

N63297-UN-15JUL03

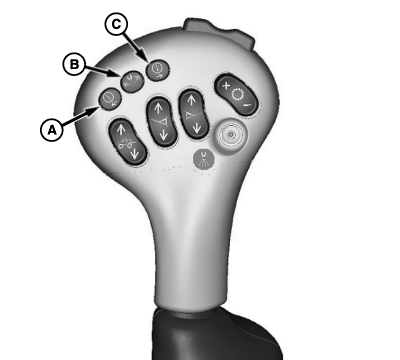

A - IBS Left Button

B - IBS Reset Button

C - IBS Right Button

Use IBS Left Button (A) to sequentially shut off individual boom sections starting at right-hand end of boom moving to left.

Use IBS Reset Button (B) to restart all shut-off sections that are enabled.

Use IBS Right Button (C) to sequentially shut off individual boom sections starting at left-hand end of boom moving to right.

See Operating IBS in Operating The Machine section for detailed procedures.
