Agitation Switch

N98764-UN-17SEP12

N102006-UN-22MAY13

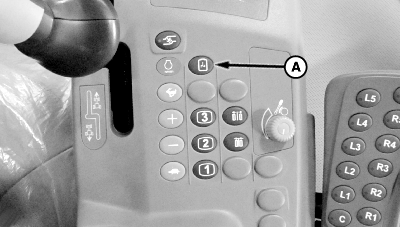

A - Agitation Switch

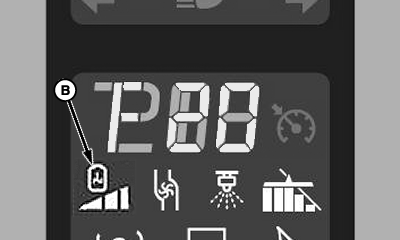

B - Indicator
Press agitation switch (A) to start agitation. Push to disengage.
Indicator (B) on primary display unit will light when agitation function
is engaged.
Solution pump must first be engaged for agitation to occur.
|
|
RG53986,00012F5-19-20130211
|
|
