Left-hand and Right-hand Fence Row Nozzles Switches—If Equipped

N100186-UN-05NOV13

N89480-UN-21SEP10

A - Fence Row Nozzle Switches

B - Cone

C - Cone

Push left or right fence row nozzle switches (A) to engage left or right side fence row nozzle. Push switches again to disengage.

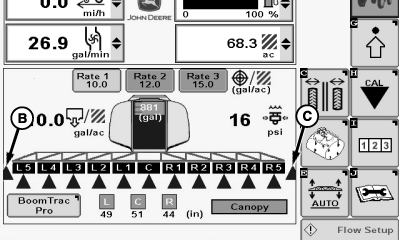

When the fence row nozzle is turned on, a cone (B) or (C) will appear at the end of the boom sections on Sprayer Main Page.

NOTE: Fence row nozzle will not operate if outer section on corresponding side is not enabled.
