Ladder Switch

N93797-UN-17SEP12

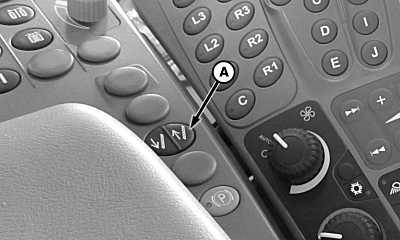

A - Switch

Ladder will automatically raise when machine moves forward at speeds greater than 1 mph and will automatically lower when machine is shut off.

Ladder will lower automatically after leaving seat for 3 seconds.

Ladder may also be raised by pushing switch (A) or lowered by pushing switch (A).
