Throttle

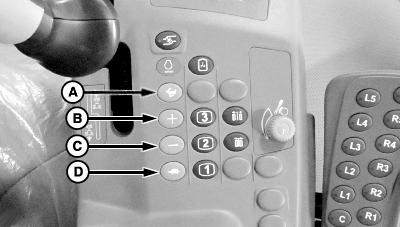

N98765-UN-17SEP12

A - High Idle Switch

B - Engine Speed Increase Switch

C - Engine Speed Decrease Switch

D - Low Idle Switch

Push engine speed decrease switch (C) to decrease engine speed.

Pushing and holding the engine speed increase switch or the engine speed decrease switch will increase or decrease engine speed at a predefined rate.
