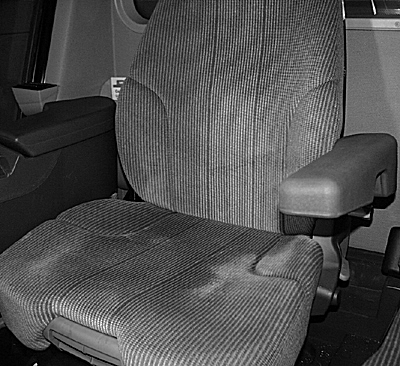

ComfortCommand™ Operator's Seat

H67068-UN-02APR01

The ComfortCommand operator's seat has an air suspension system for added operator comfort. The seat has a self-contained electric compressor to adjust the seat suspension to match the operator's height and weight. Seat adjustments are as follows:

• Vertical Shock Dampener
• Height Adjustment
• Fore/Aft Adjustment
• Fore/Aft Attenuator Lock-Out
• Lateral Attenuator Lock-Out
• Seat Bottom Tilt
• Seat Bottom Fore/Aft Adjustment
• Seat Back Tilt
• Seat Back Lumbar Support
• Left Hand Armrest

IMPORTANT: Park vehicle and shutoff engine before doing seat adjustments.
