Adjust Rear View Mirrors

• CAUTION: Avoid serious injury from falling. Do not stand on fuel tank.

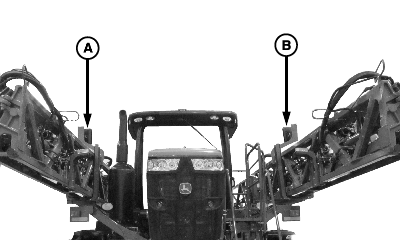

  N102350-UN-11FEB13

  A - Right-Hand Mirror

  B - Left-Hand Mirror

  Use a commercial ladder to access right-hand mirror (A) and adjust for desired rear visibility by pivoting mirror head.

---

• Use landing on left-hand side of machine to access left-hand mirror (B) and adjust for desired rear visibility by pivoting mirror head.

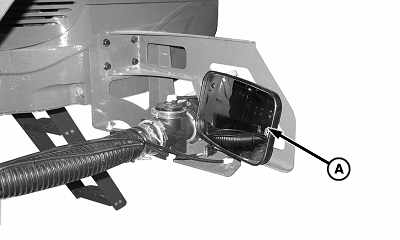

N99156-UN-19JUL12

A - Undercarriage Mirror
