Auxiliary Power Strip

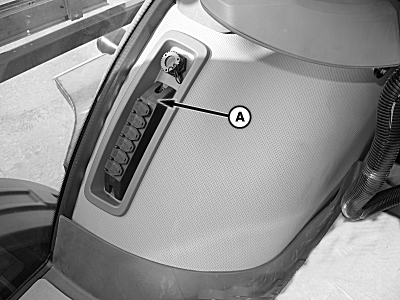

N94251-UN-17SEP12

A - Power Strip

IMPORTANT: Auxiliary power strip is not a surge suppressor. Electrical equipment with program memory capacity for data storage requires protection from damage of electrical surges and spikes which could occur in systems without transient voltage protection.

Auxiliary power strip (A) provides six outlets of 12-volt power with grounds for connecting auxiliary equipment. Power is 20 Amp switched or un-switched.

Adapters plug directly into power strip as un-switched power. To change to switched power on accessory outlet adapter or standard adapter (with three wires), remove small tab at end of slot on plug and rotate plug 180°.

NOTE: A small white dot on adapter plug face can be used to indicate whether plug is in switched or un-switched position. If dot is facing power strip cap (cannot be seen), circuit is un-switched. If dot is opposite cap hinge side (visible), circuit is switched.

Adapters are available from your John Deere dealer for the following: Accessory outlet adapters, 3-way convenience adapters, and standard adapters.
