Prepare Hydraulic System—John Deere 8000/9000 and R/RT Series Tractors


John Deere 8000/9000 Series Tractors

  1. NOTE:

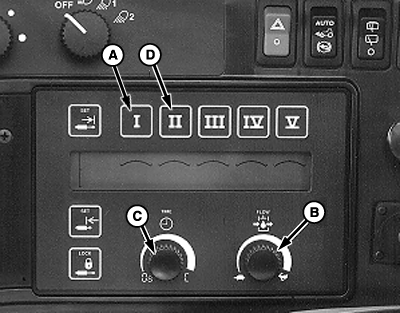

    N109471
    N109471-UN-27JAN14

    A - SCV I Selector Button

    B - Flow Rate Adjustment

    C - Time Adjustment

    D - SCV II Selector Button

    The following instruction for preparing John Deere 8000/9000 Series Tractor hydraulic systems is provided as an example of process. See your tractor's operating manual for proper procedures to follow for your machine.

    Check hydraulic oil level. Fill if necessary.


  2. Press SCV I selector button (A) (depth control).

  3. Adjust flow rate (B) to fast position.

  4. Adjust detent time (C) to 10 sec.

  5. Press SCV II selector button (D).

  6. Adjust flow rate (B) to slow position.

  7. Set time adjustment (C) to "C" for continuous flow.

  8. Repeat setting for SCV III-V (if equipped) using charts below.

Rigid Machine Settings For R/RT Series Tractors

SCV

Function

Flow

Detent Time

I

Depth Control

Fast

10 Seconds

II

Gang Depth

Slow

Continuous

III

Closing Disk Depth

Slow

Continuous

IV

Rolling Basket Down Pressure

Slow

Continuous

Folding Machine Settings For R/RT Series Tractors

SCV

Function

Flow

Detent Time

I

Depth Control

Fast

10 Seconds

II

Gang Depth

Slow

Continuous

III

Closing Disk Depth

Slow

Continuous

IV

Rolling Basket Down Pressure

Slow

Continuous

V

Wing Fold

Slow1

Continuous


John Deere R/RT Series Tractors

  1. NOTE:

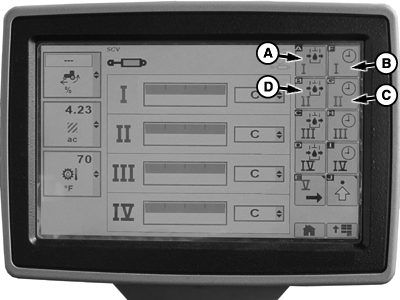

    N109472
    N109472-UN-27JAN14

    A - SCV I Flow Rate Adjustment

    B - SCV I Time Adjustment

    C - SCV II Flow Rate Adjustment

    D - SCV II Time Adjustment

    The following instruction for preparing John Deere R/RT Series Tractor hydraulic systems is provided as an example of process. See your tractor's operating manual for proper procedures to follow for your machine.

    Check hydraulic oil level. Fill if necessary.


  2. SCV I—Adjust flow rate (A) to 10.

  3. Set detent time (B) to 10 sec.

  4. SCV II—Adjust flow rate (C) to 2.

  5. Set time adjustment (D) to "C" for continuous flow.

  6. Repeat setting for SCV III-V (if equipped) using charts below.

Rigid Machine Settings For R/RT Series Tractors

SCV

Function

Flow

Detent Time

I

Depth Control

10

10 Seconds

II

Gang Depth

2

Continuous

III

Closing Disk Depth

2

Continuous

IV

Rolling Basket Down Pressure

2

Continuous

Folding Machine Settings For R/RT Series Tractors

SCV

Function

Flow

Detent Time

I

Depth Control

10

10 Seconds

II

Gang Depth

2

Continuous

III

Closing Disk Depth

2

Continuous

IV

Rolling Basket Down Pressure

2

Continuous

V

Wing Fold

21

Continuous

1 Flow for wing fold can be turned up when folding and unfolding, but should be adjusted to lower setting for field use.

KB78086,0000D85-19-20141120
