Replace Ripper Point

Replaceable ripper points allow you to exchange a worn or damaged standard point with a new one.

1. CAUTION: Close transport lockup valve when working on machine. Machine can fall, causing death or injury to you or others.


   N104817-UN-16JUL13

   Transport Lockup Valve in CLOSED Position

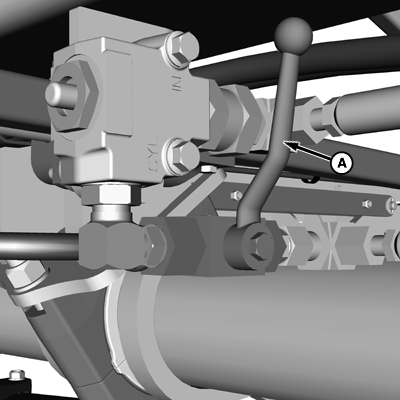

   A - Transport Lock-Up Valve

   Verify that machine is supported properly and CLOSE transport lockup valve (A) by turning handle clockwise 90° so it is NOT IN LINE with valve as shown.

---




2. IMPORTANT:


   N96490-UN-25JAN12

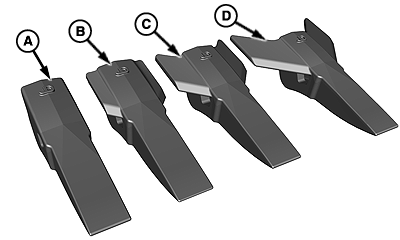

   A - Cast Point, 58 mm (2-3/4 in)

   B - Cast LaserRip™ Point, 127 mm (5 in)

   C - Cast LaserRip Point, 178 mm (7 in)

   D - Cast LaserRip Point, 254 mm (10 in)

   Replace ripper point (A, B, C, or D) with correct type to obtain desired performance.

   Identify ripper point (A, B, C, or D) type.

---




3. CAUTION: Worn point edges can be sharp enough to cut, causing serious injury to yourself or others. Wear protective gloves while handling sharp-edged points.


   N96487-UN-25JAN12


   N96488-UN-25JAN12


   N96489-UN-25JAN12

   A - LaserRip Ripper Point

   B - Standard

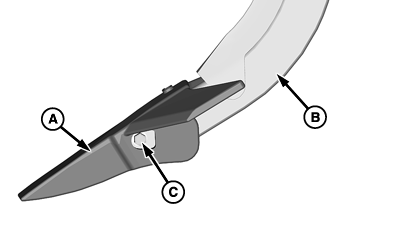

   C - Flange Head Cap Screw

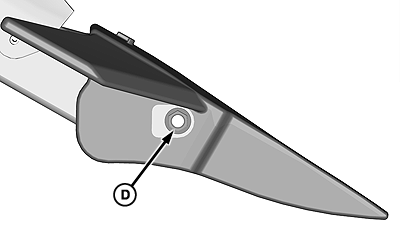

   D - Flange Lock Nut

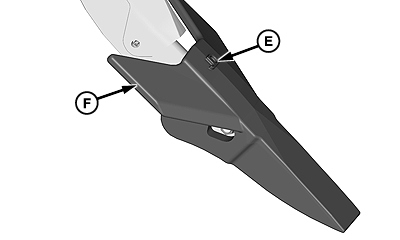

   E - John Deere Trademark—JD

   F - Wing Taper Points Straight

   To remove point (A) from standard (B), remove flange cap screw (C) and flange lock nut (D).

---




4. IMPORTANT: Verify John Deere trademark JD (E) is centered and at ripper point top when installed. Wing tapers (F) MUST point straight.

   NOTE: Flange cap screw and flange lock nut retain point to STANDARD ONLY. Flange cap screw head and flange lock nut insure ripper point retention on standard.

   Attach ripper point (A) to standard (B) using flange head cap screw (C) and flange lock nut (D).

5. IMPORTANT:


   N89622-UN-26OCT10

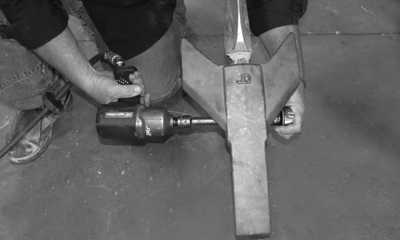

   Air Gun With 3/4 in. Sockets


   N89623-UN-26OCT10

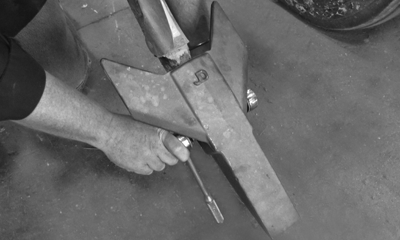

   Two 3/8 in. Drive Ratchets


   N89624-UN-26OCT10

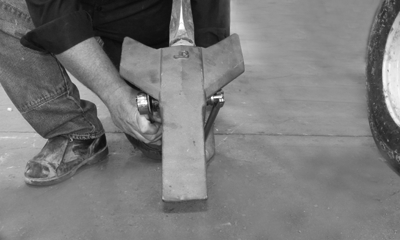

   3/8 in. Drive Ratchet And Breaker Bar


   N89625-UN-26OCT10

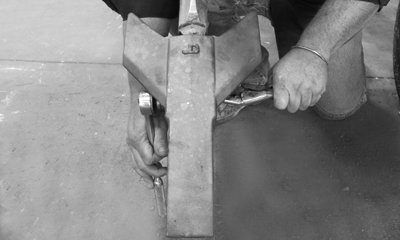

   3/8 in. Drive Ratchet or Breaker Bar And Needle Nose Locking Pliers

   To ensure proper installation, use one of these combinations of special tools to install LaserRip points.

   Tighten flange lock nut to specification.

   Item	Measurement	Specification
   Flange Lock Nut	Torque	101 N·m (75 lb·ft)

---
