Attach Safety Chain to Tractor

CAUTION:

N99534
N99534-UN-17AUG12

Standard Drawbar

N113088
N113088-UN-19MAY14

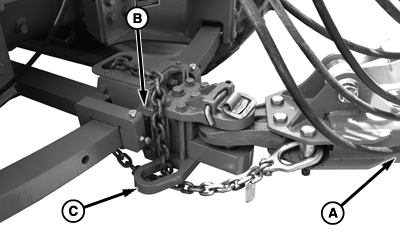

Wide-Swing Drawbar

A - Drawn Equipment

B - Drawbar

C - Intermediate Support

A safety chain will help control drawn equipment (A) should it accidentally separate from drawbar (B) while transporting. A runaway machine can cause serious injury or death to you or others. Using appropriate adapter parts, attach chain to tractor drawbar support. Provide only enough slack in chain to permit turning. See your John Deere dealer or qualified service provider for a chain with a strength rating equal to or greater than gross weight of towed machine.

DO NOT attach chain to intermediate support (C). Chain MUST only loop through intermediate support.

Prior to operating implement, verify all electrical harnesses, hydraulic hoses and safety chain are routed properly to avoid damage.

When storing machine, keep safety chain up off ground and hook to machine support assembly on hitch.

Always replace a safety chain if one or more links or end fittings are broken, stretched or otherwise damaged.

OUO6061,0002857-19-20160128
