Inspect and Adjust Module Forming Belt Tracking


Observe Belt Tracking

N107181
N107181-UN-02OCT13

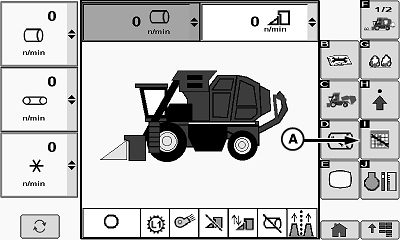

Daily Service Icon

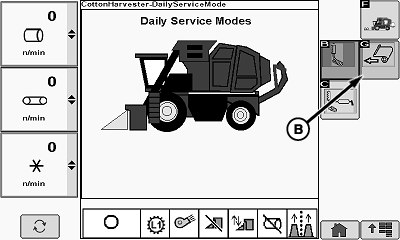

N107182
N107182-UN-02OCT13

Load Wrap Icon

N104535
N104535-UN-07JUN13

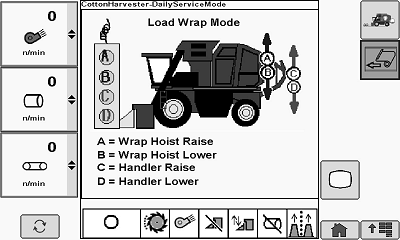

Load Wrap Mode

A - Daily Service Icon

B - Load Wrap Mode Icon

  1. IMPORTANT: Poor belt tracking is not normal and can lead to belt lace damage and subsequent belt failure. Every effort must be made to correct belt tracking issues when they are discovered.

    Start engine and wait for control units and CommandCenter™ display to initialize.

  2. Select daily service icon (A) on display.

  3. Select load wrap mode icon (B). Load wrap mode appears on-screen.

  4. External tether control unit is now active.

  5. CAUTION: Module builder gate and handler are heavy and can cause serious injury or death. Before operating module builder tether control, make sure that no one is on or near accumulator, module builder, or handler.

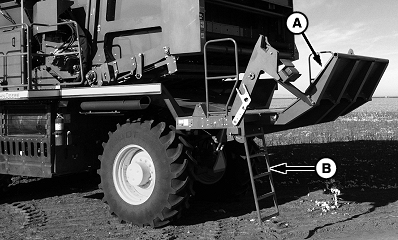

    N109201
    N109201-UN-02JAN14

    A - Handler

    B - Ladder

    Press button D on tether control unit and lower handler (A).


  6. Remove handler ladder (B) from storage position and lock it down to provide access to handler platform.

  7. NOTE:

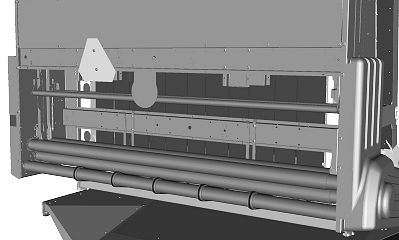

    N109940
    N109940-UN-29JAN14

    N87337
    N87337-UN-19NOV09

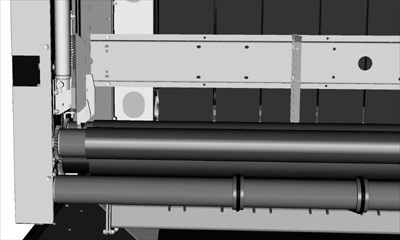

    Best view of belts is obtained when there is no roll of wrap on upper wrap rollers.

    From handler platform, look through wrap box and observe position of module builder belts in relation to rear guides.


  8. Climb down from platform and return handler ladder to harvest position.

  9. N108799
    N108799-UN-03JAN14

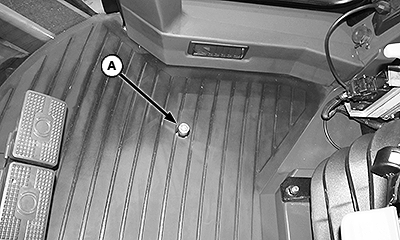

    Foot Switch

    A - Foot Switch

    Press high engine speed button to run engine at high speed.


  10. Press and hold foot switch (A) to run material handling system for 5—10 minutes.

  11. Release foot switch. Press low engine speed button.

  12. Lower ladder. Climb onto platform and again observe position of module builder belts in relation to rear guides.

  13. NOTE: Belt edges rubbing on rear guides is normal and is not considered to be poor tracking.

    Poor tracking occurs when belts ride up on rear guides and start to curl. Poor belt tracking can cause belts to ride on one another and stretch unevenly and further hinder belt tracking. Poor belt tracking can also cause the lace pin to break and the lace to pull out of the belt.

    Using the following table, select the condition that best describes the belt tracking observed and perform the corresponding corrective action.



    Observed Belt Tracking

    Corrective Action

    1. Belts centered between guides and tracking properly.

    None required.

    2. Belts riding up on guides to the right.

    Adjust tracking. See Reduce Excess Tracking to Right.

    3. Belts riding up on guides to the left.

    Adjust tracking. See Reduce Excess Tracking to Left.

    4. Individual belt riding up on guide to right or left.

    Adjust individual belt tracking. See Adjust Individual Belt Tracking.


Reduce Excess Tracking to the Right

N107183
N107183-UN-02OCT13

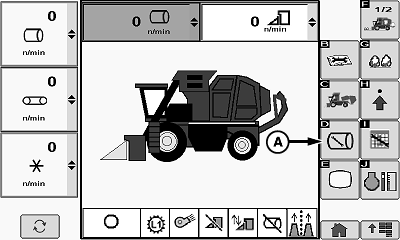

RMB Service Mode Menu

N104571
N104571-UN-10FEB14

RMB Service Mode Menu

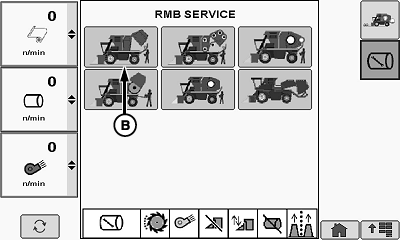

A - RMB Service Mode Icon

B - RMB Service Icon

Belt tracking is controlled by adjusting the position of the upper rear gate rollers. Adjustment must be made on one side of machine only. Adjustments are made in small increments and tracking is rechecked after each adjustment.

If belts are tracking to the right, the upper rear gate roller on the left side must be adjusted forward. If no further adjustment is available on the left side roller, then the right side roller must be adjusted rearward.

  1. Select RMB service mode icon (A). RMB service menu appears.

  2. Select RMB service icon (B). RMB service setup functional diagram screen appears.

  3. External tether control unit is now active.

  4. CAUTION: Module builder gate is heavy and can cause serious injury or death. Place rear gate in cradle and engage gate hydraulic lock valve and handler hydraulic lock valve, before working on or around module builder.

    Press button D on tether control unit to place gate in cradle.

  5. N113680
    N113680-UN-21JUL14

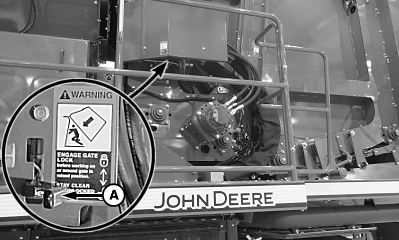

    Gate Hydraulic Lock Valve Lever

    N113678
    N113678-UN-17JUL14

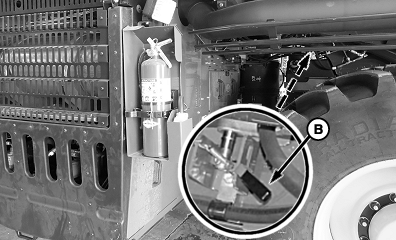

    Handler Hydraulic Lock Valve Lever

    N107184
    N107184-UN-02OCT13

    N104574
    N104574-UN-10JUN13

    RMB Service Mode Menu

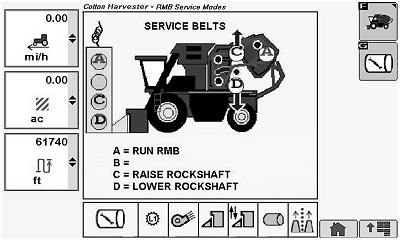

    N104134
    N104134-UN-28MAY13

    Belt Service Functional Diagram

    A - Gate Hydraulic Lock Valve Lever

    B - Handler Hydraulic Lock Valve Lever

    C - RMB Service Mode Tab

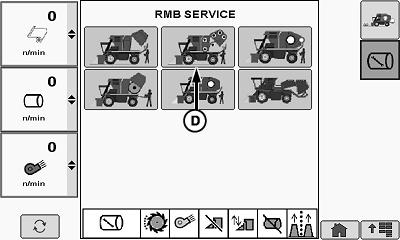

    D - Belt Service Mode Icon

    Move gate hydraulic lock valve lever (A) and handler hydraulic lock valve lever (B) to locked position.


  6. Select RMB service mode tab (C) to access RMB service mode menu.

  7. Select belt service mode icon (D). Belt service functional diagram screen appears.

  8. Tether control unit is now active.

  9. Press button C on tether control unit to raise rockshaft and relieve belt tension.

  10. N87339
    N87339-UN-17NOV09

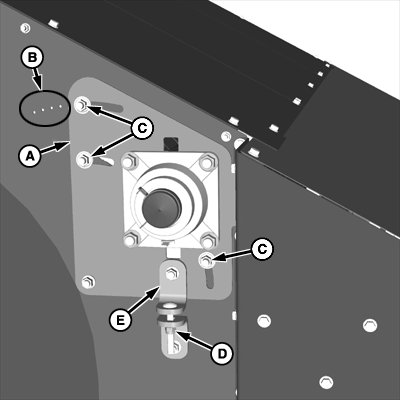

    Roller Adjustment Plate

    N107185
    N107185-UN-02OCT13

    RMB Service Mode Icon

    A - Roller Adjustment Plate

    B - Adjustment Indicators

    C - Cap Screw (3 used)

    D - Nut

    E - Adjustment Plate Bracket

    F - RMB Service Icon

    Observe position of left upper rear roller adjustment plate (A) relative to adjustment indicators (B). Also note position of retaining cap screws (C) in adjustment slots. If adjustment plate is already all the way forward, then the right side roller must be adjusted rearward.


  11. Loosen cap screws retaining adjustment plate.

  12. Loosen nut (D) on bolt on adjustment plate bracket (E).

  13. NOTE: It can be necessary to apply tension to belts to cause plate to move forward.

    Rotate roller adjustment plate forward to align with the next indicator hole.

  14. Tighten retaining cap screws, then tighten nut on bracket bolt.

  15. Press button D on tether control unit to lower rockshaft and tension belts.

  16. Disengage gate hydraulic lock valve and handler hydraulic lock valve.

  17. Select RMB service icon (F). RMB service mode menu appears.

  18. N104576
    N104576-UN-10JUN13

    RMB Service Mode Icon

    N104577
    N104577-UN-10JUN13

    RMB Service Text Screen

    N110767
    N110767-UN-28FEB14

    A - RMB Service Icon

    B - Harvest Mode Icon

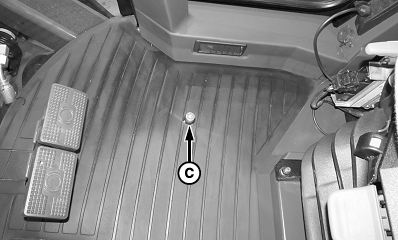

    C - Foot Switch

    Select RMB service icon (A). RMB service text screen appears.


  19. Press button C on tether control unit to return gate to closed position.

  20. Select harvest mode icon tab (B) on display to return to harvest mode.

  21. Press high engine speed button to run engine at full speed.

  22. Press and hold foot switch (C) to run material handling system for 5—10 minutes.

  23. Release foot switch. Press low engine speed button.

  24. Lower ladder. Climb onto platform and again observe position of module builder belts in relation to rear guides.

  25. Repeat adjustment as necessary until belts are tracking properly.


Reduce Excess Tracking to the Left

Belt tracking is controlled by adjusting the position of the upper rear gate rollers. Adjustment must be made on one side of machine only. Adjustments are made in small increments and tracking is rechecked after each adjustment.

If belts are tracking to the left, the upper rear gate roller on the right side must be adjusted forward. If no further adjustment is available on the right side roller, then the left side roller must be adjusted rearward.

The procedure for adjustment of the right side roller is the same as for the left side roller previously described.


Adjust Individual Belt Tracking

N107183
N107183-UN-02OCT13

RMB Service Icon

N104571
N104571-UN-10FEB14

RMB Service Mode Icon

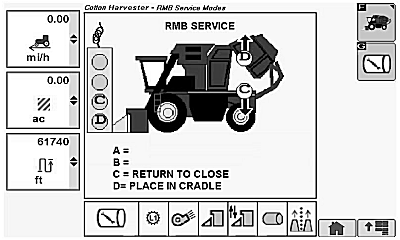

N104578
N104578-UN-10JUN13

A - RMB Service Mode Icon

B - RMB Service Icon

IMPORTANT: Poor tracking of an individual belt is not normal and must be corrected as soon as the problem is discovered. An individual belt tracking poorly can ride on the belts on either side of it and cause damage to or failure of all three belts.

If most of the belts are tracking properly between the guides, but one or two of the interior belts are riding up on a guide, check for cotton buildup around the front rockshaft rollers and remove debris. If no buildup is present, flip the individual belt that is tracking poorly to reverse the tracking direction. Flip belt or belts as follows:

  1. Select RMB service mode icon (A).

  2. Select RMB service icon (B). RMB service screen appears.

  3. Press button D on tether control unit to place gate in cradle.

  4. N113680
    N113680-UN-21JUL14

    Gate Hydraulic Lock Valve Lever

    N113678
    N113678-UN-17JUL14

    Handler Hydraulic Lock Valve Lever

    N107184
    N107184-UN-02OCT13

    RMB Service Icon

    N104574
    N104574-UN-10JUN13

    RMB Service Menu

    N104134
    N104134-UN-28MAY13

    A - Gate Hydraulic Lock Valve Lever

    B - Handler Hydraulic Lock Valve Lever

    C - Service Mode Tab

    D - Belt Service Mode Icon

    Engage gate hydraulic lock valve (A) and handler hydraulic lock valve (B).


  5. Select RMB service mode icon (C) to access RMB service mode menu.

  6. Select belt service mode icon (D). Service belts screen appears.

  7. Press button A on tether control unit and run module builder until lace on belt is approximately 450 mm (18 in.) behind rockshaft roller.

  8. Press button C on tether control unit to raise rockshaft to relieve belt tension.

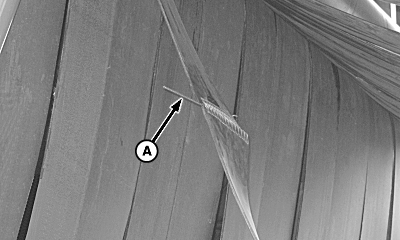

  9. N82414
    N82414-UN-21JAN09

    N82415
    N82415-UN-21JAN09

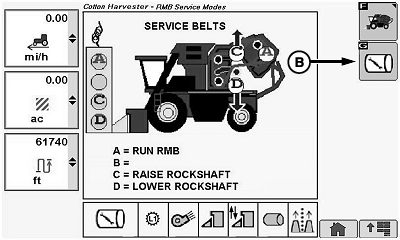

    N104579
    N104579-UN-10JUN13

    A - Splice Pin

    B - RMB Service Icon

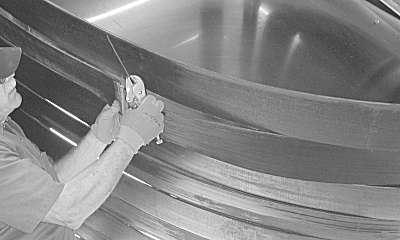

    Grasp splice pin (A) with pliers and rotate pin 90 degrees (1/4 turn), then pull pin out of belt splice.


  10. Flip back half of belt over and install splice pin. Insert pin into splice with notches facing flat sides of belt, then rotate pin 90 degrees into locked position.

  11. Press button D on tether control unit to lower rockshaft and tighten belts.

  12. Press button A on tether control unit to run module builder until belt lace appears in original position.

  13. Press button C on tether control unit to relieve belt tension.

  14. Remove splice pin and flip back half of belt over. Belt has now been flipped 180 degrees. Install splice pin.

  15. Disengage hydraulic lock valves.

  16. Select RMB service icon (B).

  17. N104576
    N104576-UN-10JUN13

    RMB Service Mode Icon

    N104577
    N104577-UN-10JUN13

    N110767
    N110767-UN-28FEB14

    A - RMB Service Mode Icon

    B - Harvest Mode Tab

    C - Foot Switch

    Select RMB service mode icon (A) to enter RMB service mode.


  18. Press button C on tether control unit to return module builder to closed position.

  19. Select harvest mode tab (B) on display.

  20. Press high engine speed button to run engine at full speed.

  21. Press and hold foot switch (C) to run material handling system for 5—10 minutes.

  22. Release foot switch. Press low engine speed button.

  23. Lower ladder. Climb onto platform and again observe position of module builder belts in relation to rear guides.

  24. If tracking is still not satisfactory, place machine in RMB service mode and apply talc lubricant (Part Number A52577) to entire pulley side of affected belt.

  25. Return machine to harvest mode and build five complete modules. When completing the fifth module, empty the accumulator using the cotton handling system foot switch in the cab.

  26. After ejecting the fifth module, recheck tracking of the affected belt or belts.

  27. If the affected belt or belts are still tracking poorly, return machine to RMB service mode.

  28. Flip troublesome belts as described in preceding steps 6—17.

  29. Apply talc lubricant to entire pulley side of affected belt or belts.

  30. If belts still do not track properly, contact your John Deere dealer.


Check and Adjust Belt to Gate Sidewall Clearance

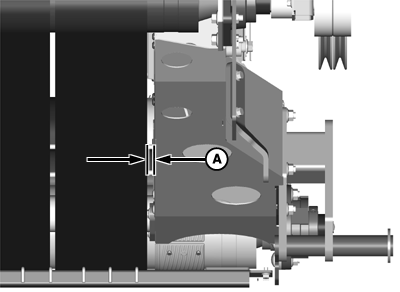

N87341
N87341-UN-19NOV09

N87342
N87342-UN-19NOV09

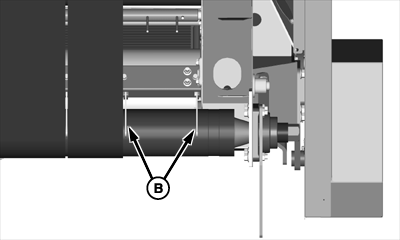

Right Side Rear Belt Guides

N87343
N87343-UN-19NOV09

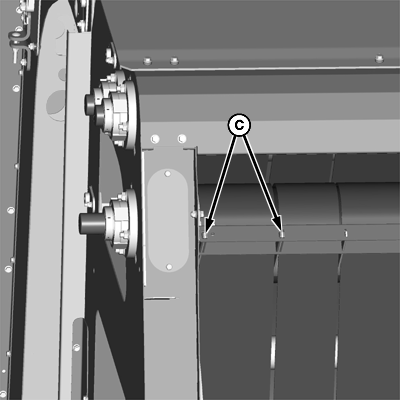

Right Side Front Belt Guides

A - Distance

B - Rear Belt Guides

C - Front Belt Guides

Once belts are tracking properly, repeat steps to run machine for 5—10 minutes. Then, lower handler into wrap feed position and lower ladder. Measure clearance and adjust as necessary, as follows:

  1. Measure distance (A) between outer baler belt and gate sidewall directly behind lower gate roller. This distance must be 19 mm (3/4 in.) or less. If distance is greater than 19 mm (3/4 in.), adjustment is required.

  2. Adjust clearance by moving rear belt guides (B) and front belt guides (C) toward the outside of the machine to force the outer belt closer to the gate sidewall.

OUO6045,0000570-19-20140721
