Clean SprayMaster™ Triplet Nozzle Bodies

CAUTION: Keep spare nozzle tips for field replacement. DO NOT clean nozzle tips by placing in mouth and blowing or you could swallow or inhale hazardous chemicals which will poison, causing serious injury or death to you or others.

IMPORTANT: Do not allow solvent or diesel fuel to contact rubber washers in caps as it causes deterioration.

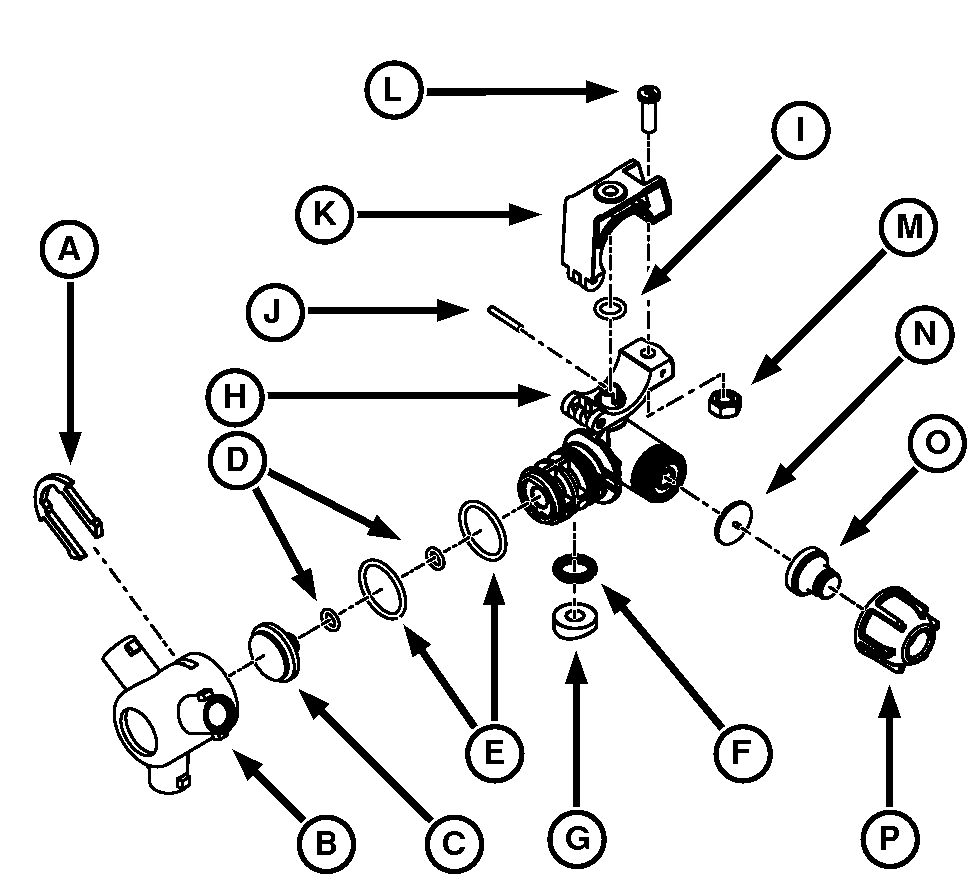

BM007056-UN-29APR16

A - Retainer

B - Tip Holder

C - Plug

D - O-rings

E - O-rings

F - O-ring

G - Seal

H - Nozzle Body

I - O-ring

J - Pin

K - Clamp

L - Screw

M - Nut

N - Diaphragm

O - Check Valve

P - Cap

1. Clean periodically and any time irregular or uneven spray patterns are noticed.

2. Wash in soapy water using a soft bristle brush to clean.

   NOTE: Service life of plastic nozzle tips can be greatly extended through careful cleaning. Do not use metal tools for cleaning as they can scratch hardened surfaces which accelerate wear and shorten service life.

   After cleaning triplet body, apply a silicone-based lubricant to large O-ring on triplet body.
