Adjust Roll Suspension Springs

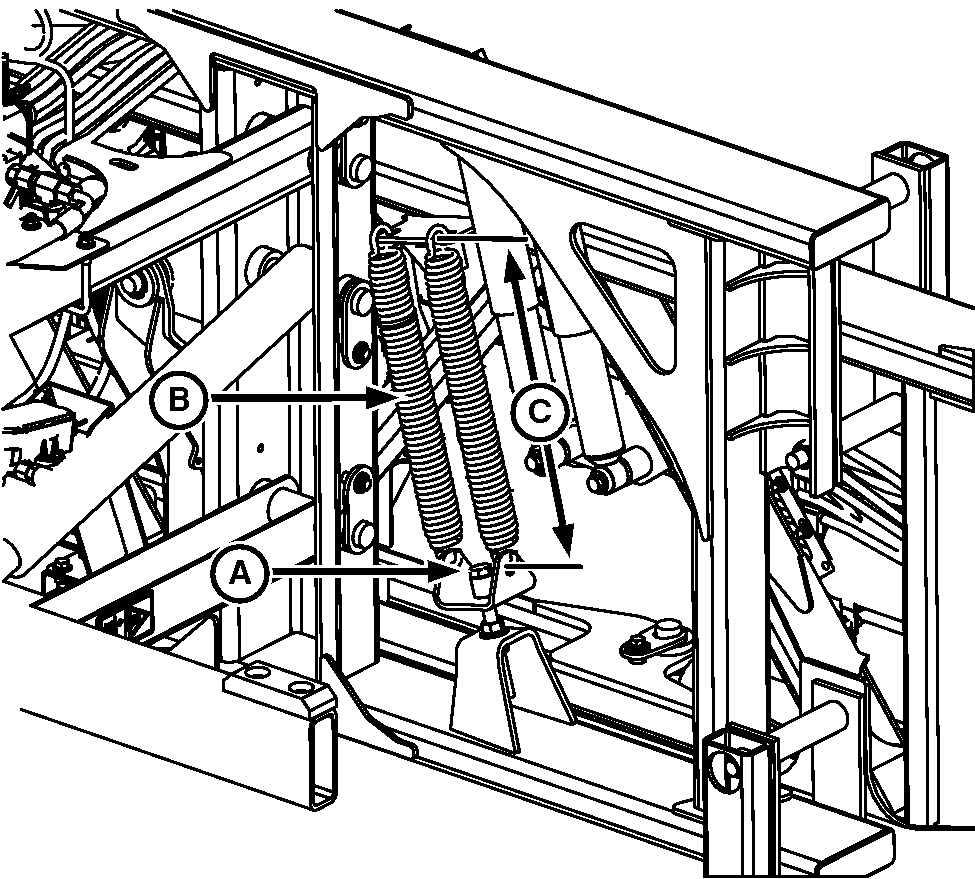

Tighten screw (A) until springs (B) have the specified length (C).

Item	Measurement	Specification
Roll Suspension Springs	Length (C)	419 mm (16.5 in)

BM007057-UN-29APR16

A - Screw

B - Springs

C - Specified Length

If initial adjustment does not cause spray boom to be level, check if spray boom is free to roll without binding or interference. Then tighten springs on the side that is low until spray boom is parallel to machine.
