Adjust Spray Boom Stop Screws

Adjust outer spray boom sections stop screws (A) in order that the outer section (B) or the breakaway section (C) is in line with the rest of the spray boom.

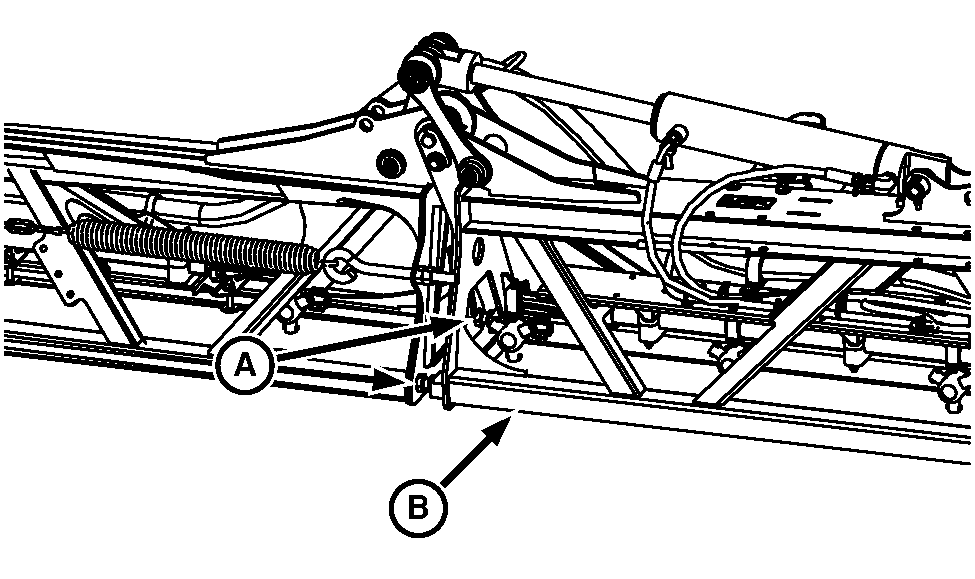

BM007059-UN-29APR16

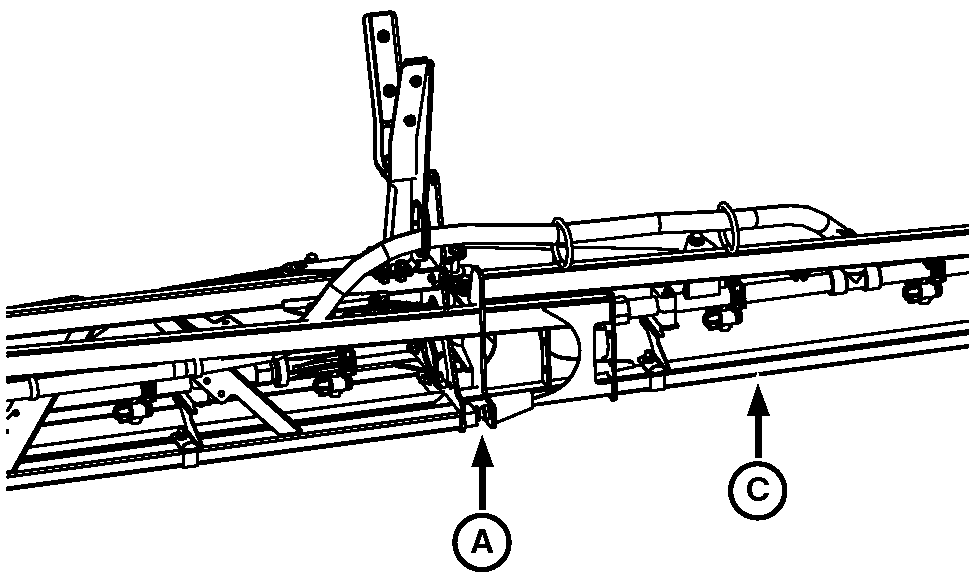

BM007058-UN-29APR16

A - Stop Screw

B - Outer Section

C - Breakaway Section
