27.4 m (90 ft) Spray Boom Flow Characteristics—Application Rate and Speed

NOTE: The ranges shown are based on water application.

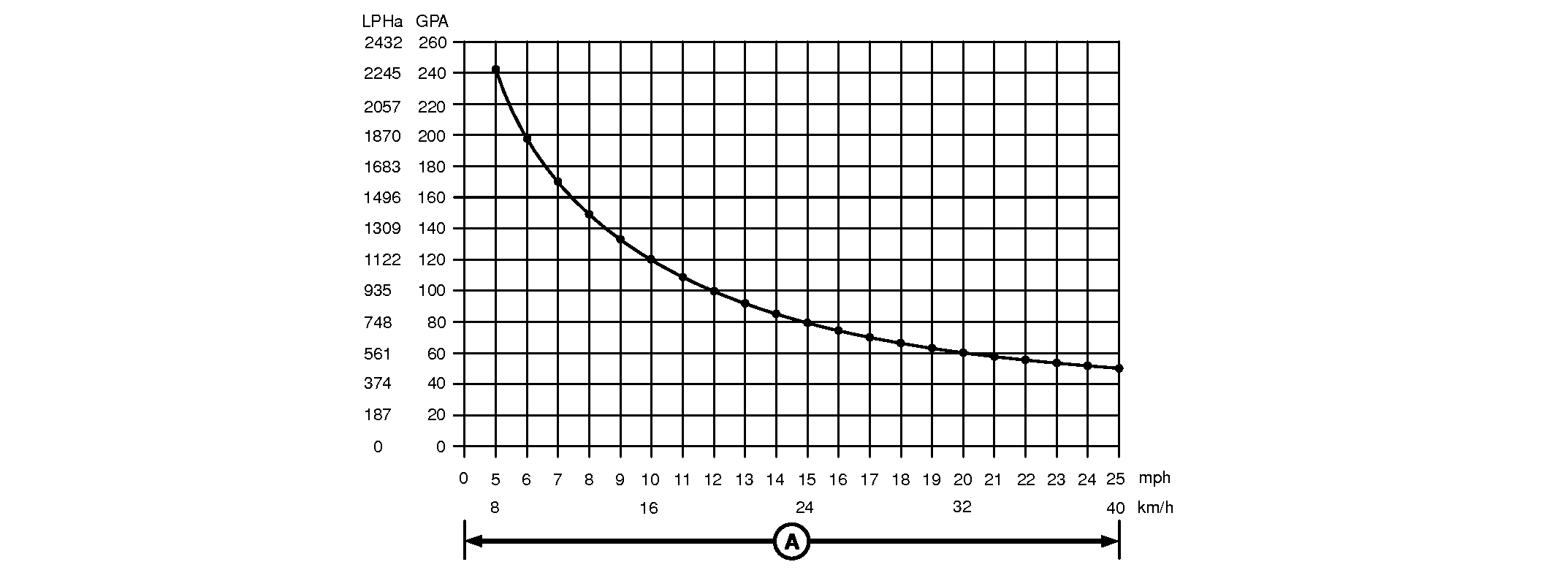

N104100-UN-10JUN13

Application Range—High Flow Pump, High Flow Plumbing

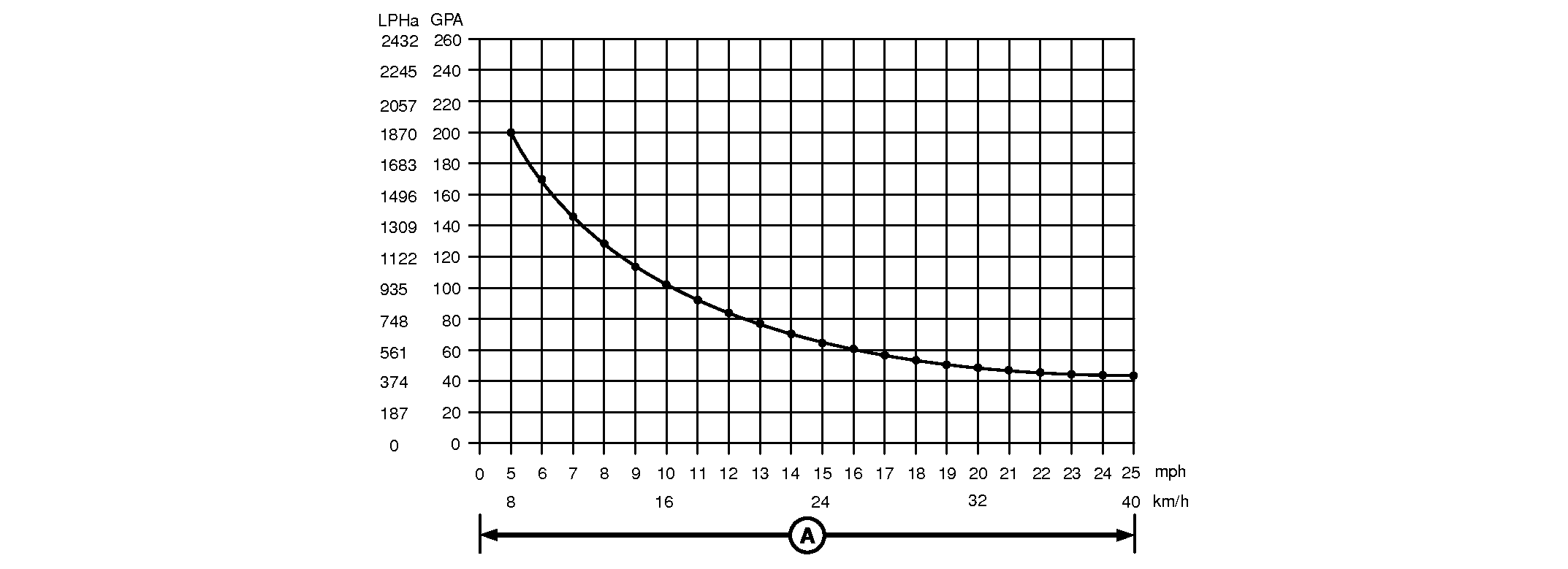

N104101-UN-10JUN13

Application Range—Standard Flow Pump, High Flow Plumbing

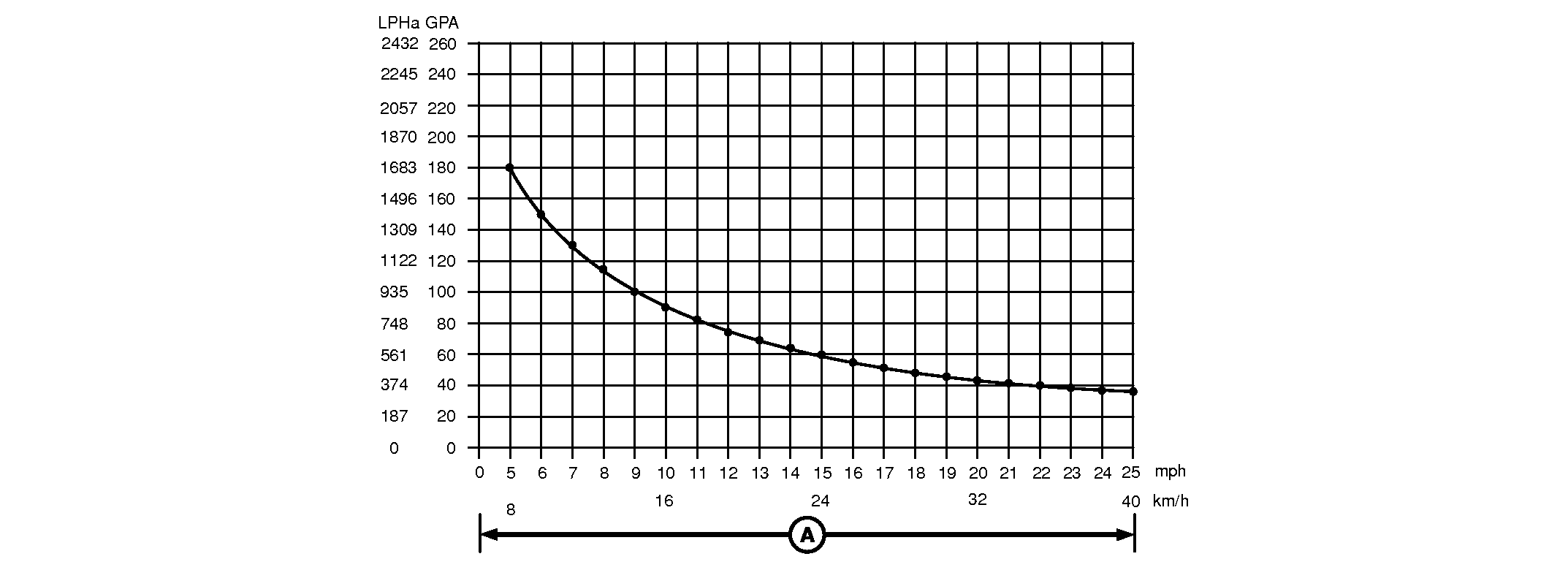

N104102-UN-10JUN13

Application Range—Standard Flow Pump, Standard Flow Plumbing

A - Vehicle Speed
