Replace Fill Station Light and Platform Lights—Halogen Bulbs

  1. NOTE: (For important safety information regarding halogen bulbs, see Safety Rules When Replacing Halogen Bulbs in this section before performing this procedure).

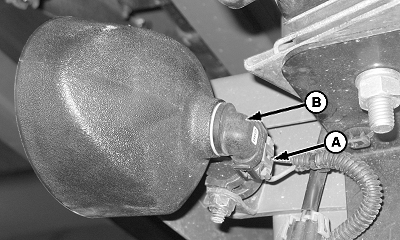

    N85278
    N85278-UN-10JUN09

    A - Harness Connector

    B - Bulb Assembly

    Disconnect harness connector (A) from bulb assembly (B).


  2. Rotate bulb assembly counterclockwise approximately 1/4 turn and remove.

  3. Install replacement bulb and connect harness connector.

  4. Reassemble in reverse order of removal.

CS12167,0000146-19-20120504
