Unfold Spray Boom in Limited Height Area

CAUTION: Keep away from overhead power lines. Serious injury or death to you or others can result due machine contact with electrical wires. Know the spray boom operating height and spray boom unfolding height of your machine.

IMPORTANT: Do not drive with the spray boom fully raised. Damage to lift system may occur in those conditions.

N44191-UN-27APR92

1. Start engine.

2. Press top of the raise/lower center frame button (A) to raise spray boom from the rear spray boom supports.

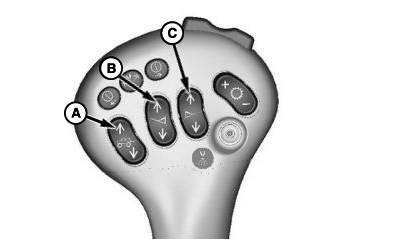

   BM018103-UN-26SEP18

   A - Raise/Lower Center Frame Button

   B - Left-Hand Side Unfold/Level Button

   C - Right-Hand Side Unfold/Level Button

---




3. Press top of the left-hand side unfold/level button (B) and top of the right-hand side unfold/level button (C) to raise the left-hand side and the right-hand side of the spray boom from the front supports, respectively.

   CAUTION: Avoid injury or death to others. Make sure no one is close to the spray boom when unfolding sections.

4. Press and hold unfold mode switch (A) while pressing the bottom of the left-hand side unfold/level button (C) and right-hand side unfold/level button (D) to open both inner spray boom sections independently until the end of the displacement.


   N84392-UN-21APR09


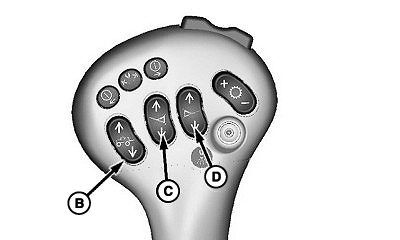

   BM018102-UN-26SEP18

   A - Unfold Mode Switch

   B - Raise/Lower Center Frame Button

   C - Left-Hand Side Unfold/Level Button

   D - Right-Hand Side Unfold/Level Button

---




5. With the inner spray boom sections opened, release all the switches.

6. Press the bottom of the left-hand side unfold/level button (C) or the right-hand side unfold/level button (D) to tilt and level each side of the spray boom to the minimum level.

7. Press bottom of the raise/lower center frame button (B) to lower spray boom until the end of the displacement.

8. Press and hold unfold mode switch (A) while pressing bottom of the left-hand side and right-hand side unfold/level button (B) to open both outer spray boom sections open independently.


   N84392-UN-21APR09


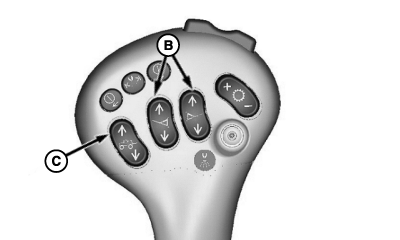

   N84586-UN-01MAY09

   A - Unfold Mode Switch

   B - Left-Hand Side and Right-Hand Side Unfold/Level Buttons

   C - Raise/Lower Center Frame Button

   NOTE: When using the unfold mode switch (A), the raise/lower center frame switch (C) function changes and can be used to operate both sides of the spray boom simultaneously.

---
